Surgical Mask Machine

Surgical Mask Machine

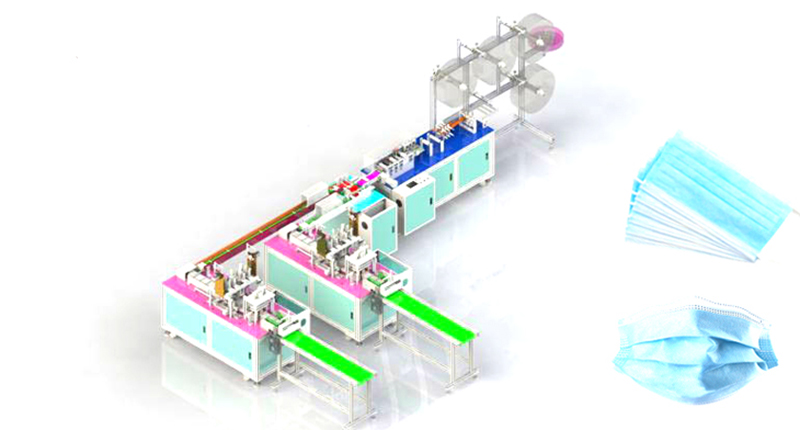

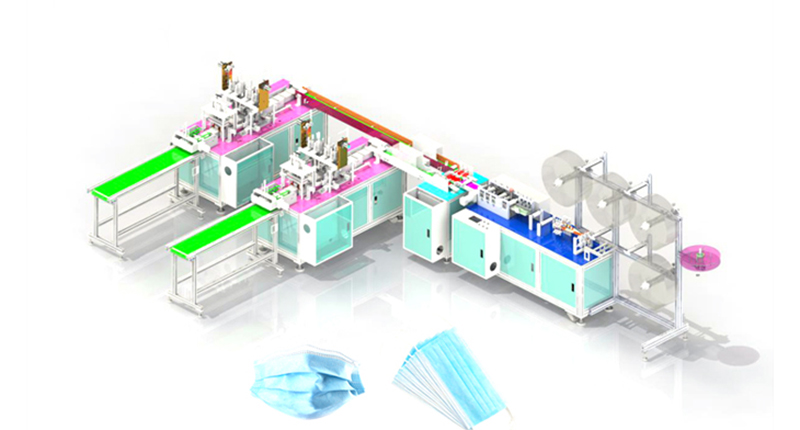

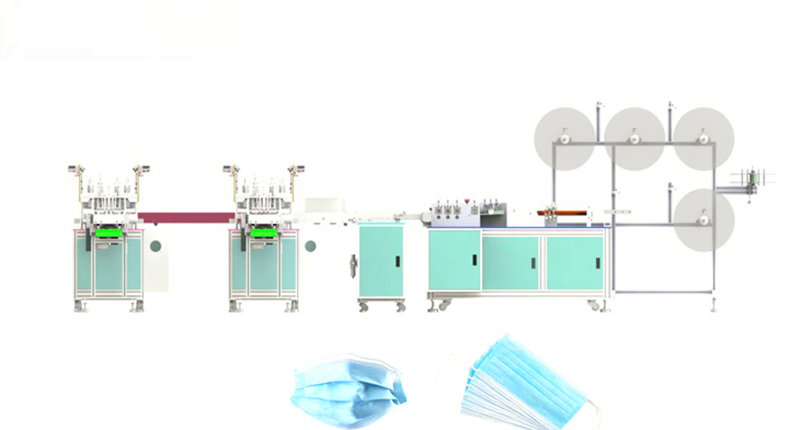

This surgical mask machine is designed to carry out the automatic production of flat earloop masks with outstanding efficiency. It is a multifunctional piece of machinery, realizing the process of feeding, folding, and pressing, nose bridge tendon feeding, mask forming, earloop welding, finished product cutting, and more.

The masks produced by this equipment are comfortable enough for long periods of use. They are suitable for medical professionals, construction workers, and even civilians trying to help prevent the spread of disease in public.

Technical Parameters
Dimension 7850mm(L)x3600mm(W)x2000mm(H)
Color International standard warm grey 1C
Weight ≤5000kg, ground weight capacity ≤500kg/m2
Working power equipment 220VAC±5%; 50HZ;rated power 12KW
Working air pressure Compressed air pressure 0.5-0.8MPa; compressed air flux 300L/min
Production efficiency 100-110PPM(based on 20 hours of operation per day, daily capacity about 120,000-140,000 pieces)
Qualification ratio 99%(excluding unqualified incoming materials, improper operation by employees)
Equipment failure ratio ≤2%(equipment failure itself)
Operating environment Temperature 10一35℃; humidity: 5-35%HR No flammable, corrosive gases, no dust (cleanliness no less than 100,000 grade)

Zhejiang Jinggong Robots Intelligent Equipment Co., Ltd. or simply Jinggong Robots, is a holding subsidiary of the listed company Zhejiang Jinggong Science and Technology Co., Ltd. (stock code: 002006). Jinggong Robots is a high-tech enterprise providing diversified solutions for those looking to enhance their manufacturing with intelligent systems. Its main business functions are divided into four segments: automated three-dimensional storage systems, intelligent logistics AGV equipment, automated assembly detection equipment, and robot integrated application equipment. These sophisticated systems are specially designed to simplify your operations.

Throughout the years, Jinggong products have been creating incredible value for customers thanks to leading technology, an excellent selection of products, and brilliant services. Jinggong Robots has launched laser welding equipment, intelligent three-dimensional warehouses, and intelligent logistics AGV equipment. This is all in addition to their research and development in the textile chemical fiber industry, auto parts industry, and general industrial fields. They have introduced overall solutions for smart manufacturing adapted to the needs of different market stakeholders. Jinggong Robots has received an outpouring of trust and praise from customers, thereby adhering to their motto, "Take the righteous passage, focus on pragmatism, cherish customer value, earn a quality reputation".

Jinggong and its employees are always adhering to their beliefs, fighting epidemics and cheering on Chinese successes.
