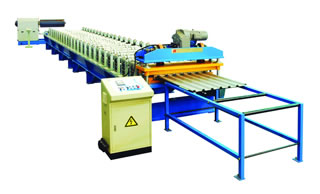

High Speed Roll Forming Machine

High Speed Roll Forming Machine

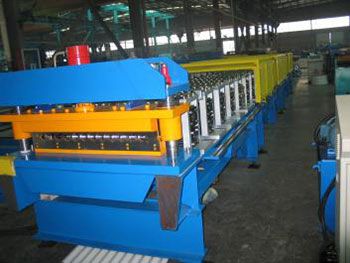

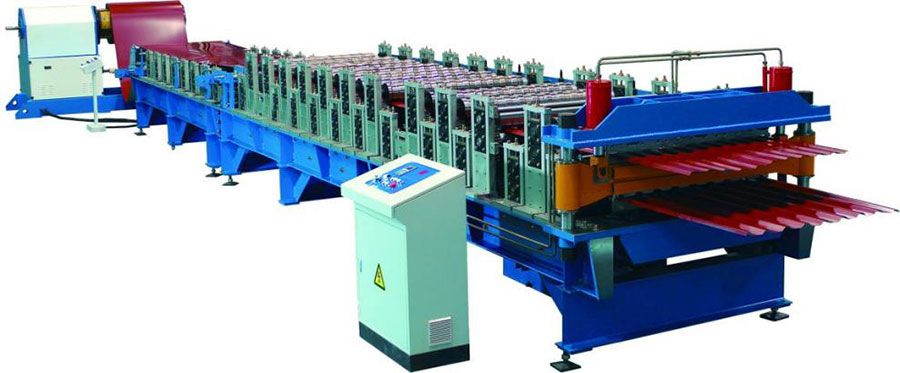

High Speed Roll Forming Machine HVM
HVM series high speed roll forming machine is developed on the basis of HV series forming machine, which combines mechanical, electrical and hydraulic equipment into an organic whole. Features of this roll forming equipment include the ability to perform high speed operations with great efficiency. The product has been awarded 2 patents of invention and 2 patents of utility model. We can design it as per customers' requirements in terms of panel shape, specifications and configuration.

Main Components

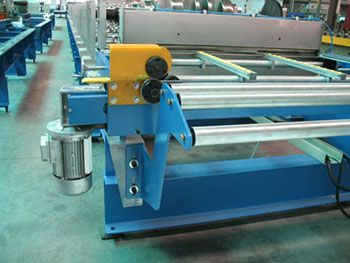

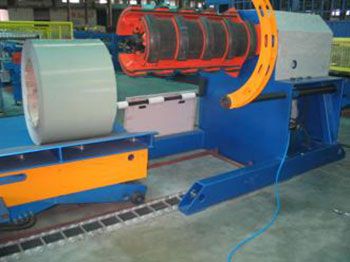

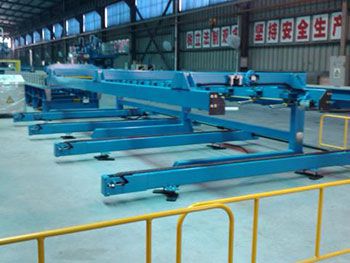

Jinggong high speed roll forming machine is made up of decoiler, sheet guiding equipment, plate lubrication system, pressing equipment, roll forming system, cutting equipment, automatic stacker, hydraulic system, and automatic control system etc.

Thank you for visiting our website! Jinggong Science & Technology has over 40 years of experience as a roll forming machine manufacturer and supplier. We specialize in the production of construction material machinery such as sandwich panel machine, steel deck forming machine, and guardrail forming machine etc. Our products are ISO9000 and CE certified, and are sought after by customers in the USA, India, Pakistan, Bangladesh, Turkey, the Philippines, Singapore, and more. We look forward to serving you. Please contact us for more information.

Technical Specifications for High Speed Roll Forming Machine
No. Item Unit Parameter Remark

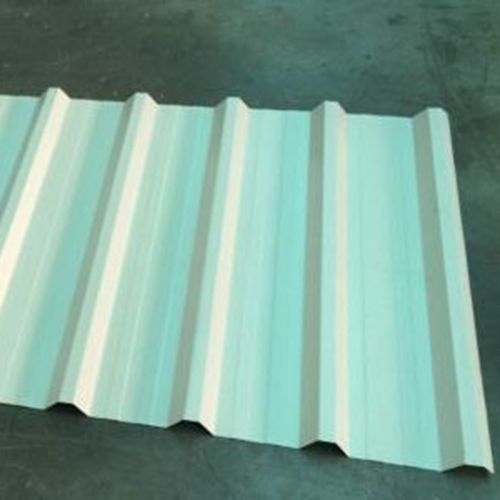

1 Suitable panel materials Type Color plate, aluminium sheet, galvanized plate Depending on customers' requirement
Thickness mm 0.4-0.8, 0.8-1.2 or 1.2-1.5
Yield strength Mpa ≤550 As per customers' material characteristic
Width mm ≤1500 According to different profile shape
Coil weight T 5, 8 or 10 Optional
2 Working speed m/min ≤20-50 According to customers' desired production capacity and requirement
3 Roller material 45steel, 38CrMoAl, GCr15 or D2
4 Roller driving mode Independent stander, built-in chain drive
5 Electric control system Industrial computer PLC frequency control
6 Console mode Touch screen+ button
7 Total power kW 12.7 As per technical requirement
8 Outline dimensions (LXWXH) m 30X3.5X2
