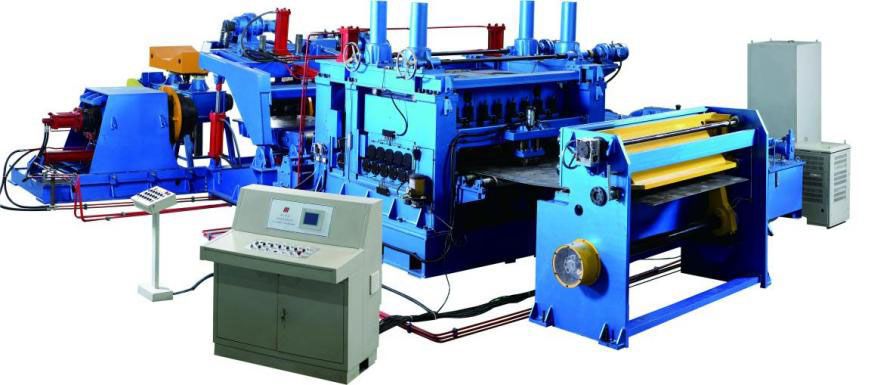

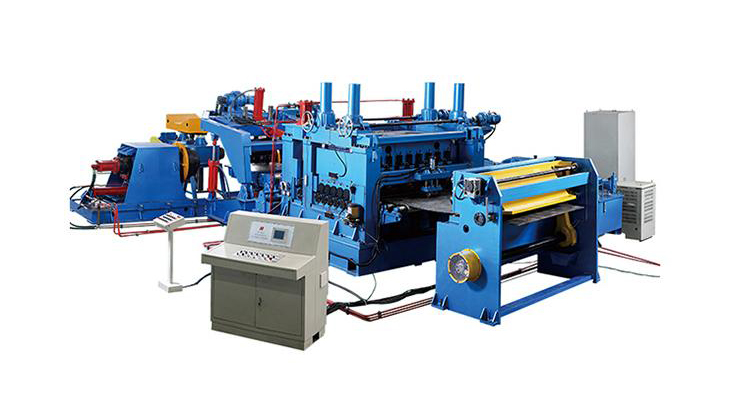

This cut-to-length machine is special equipment for uncoiling, leveling, cutting and stacking the steel sheet according to the requirement of the client. It mainly consists of uncoiler, leveling system, feeding system, cutting system, conveying system, stacking system and so on.

We can design and manufacture our cut-to-length lines to suit your required specifications.

Production Line Components

1. Paper rewinder
  Used to remove paper gaskets from sheet coils.
1. Coil loading car
  It moves horizontally and vertically, can be used for lifting the coils.
  Cylinder lifting range: 450mm
  Coil OD: Max. Φ1800mm/ Min. Φ1000mm
  Coil width: Max. 1600mm
  Max. loading capacity: 15T

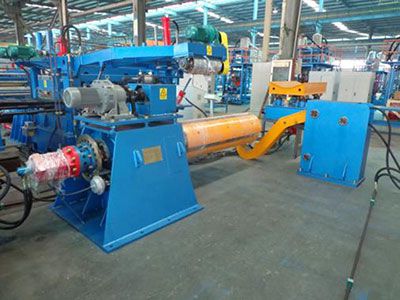

2. Decoiler
  The cantilever decoiler is equipped with hydraulic expandable mandrel. There is a disc type pneumatic braking system to control the decoiler according to the speed of the main machine in case of loosening the coil. Suitable coil ID: Φ508, Φ610, Φ762 Coil width: Max. 1600mm Max. loading capacity: 15T
1. Sheet feeding device
  The hydraulic cylinder controls the lifting of pressing roller. The AC2.2kw motor will drive the roller and feed the sheet into the leveler. The straightener will straighten the head of the sheet; it is controlled by hydraulic cylinder.
2. Pinch roller and leveler

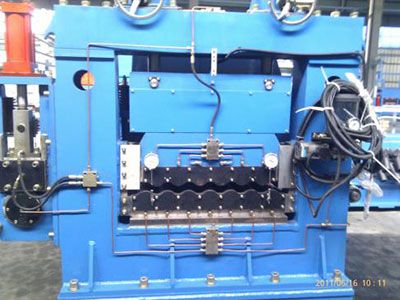

  It adopts 15 leveling rollers, 2 pitch rollers, 8 units supporting rollers, driving device and upper & lower frame
2. Loop
  The loop is used to adjust the coil speed when it enters the measuring device.

More Details

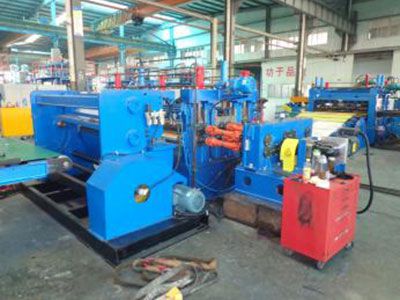

The second leveler

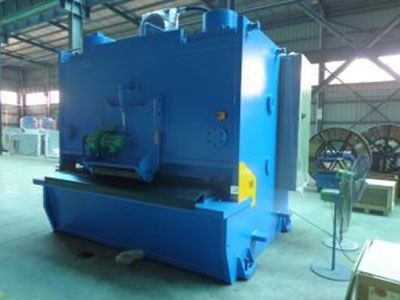

Shearer

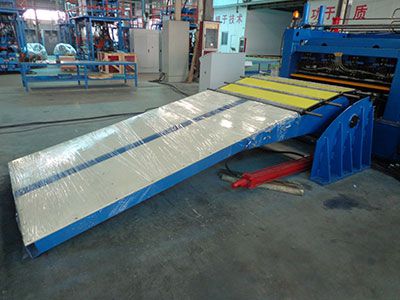

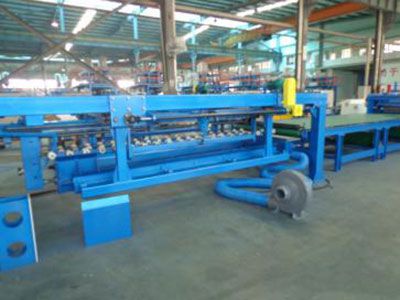

Stacking device
Lubrication system

Technical Parameters

Model	JH-3×1600	JH-6×1600	JH-10×1600	JH-12×2000	JH-16×2200	JH-20×2200	JH-30×2200
Thickness(mm)	0.5-3.0	1.5-6.0	2.5-10	3.0-12	4.0-16.0	5.0-20	7.5-30
Coil weight	35	30	35	35	35	40	40
Width(mm)	800-1600	800-1600	800-1600	1000-2000	1000-2200	1000-2200	1000-2200
Quantity of leveling rollers	≥15	≥13	≥11	≥11	≥9	≥9	≥9
Line speed(meter/minute)	0-60	0-40	0-30	0-30	0-20	0-20	0-20
Power(KW)	90	155	240	255	255	305	460
Mechanical area(m)	8×30	8×35	8×30	10×32	10×53	10×55	10×56

Cut coil material specification	Cut material	Common carbon steel, stainless steel, color coated plate, and galvanized plain steel
	Coil width(mm)	200-650	600-1350	600-1600
	Coil thickness	0.2-2.0 mm	0.2-2.0 mm	0.3-3.0 mm
	Coil weight(T)	6	15	15
Line speed(m/min)		15-50 m/min	15-50 m/min	15-60 m/min
Cutting length(mm)		300-1500	600-2500	1000-4000
Power (kw)		75	95	110
Mechanical area(M)		4×16	7×20	9×26
