    HGM Steel Deck Roll Forming Machine

    HGM Steel Deck Roll Forming Machine
    Inquiry

    HGM steel deck roll forming machine is a new model developed and produced by Jinggong combined with introduced advanced technology. This roll former is capable of implementing processes including uncoiling, cold roll forming, cold stamping, precise processing, cutting-to-length, automatic stacking, along with industrial automation controlling, achieving high efficiency fully automatic production process. The maximum forming speed reaches 60m/min.

    We at Jinggong can design and manufacture custom roll forming machine suited to your sheet types.

    Samples

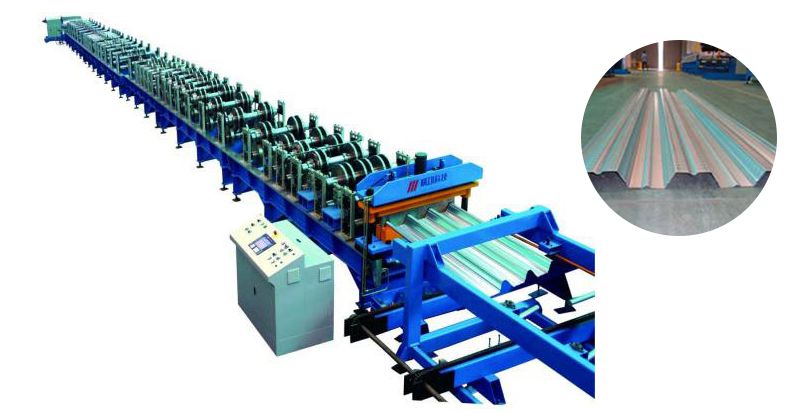

    • HGM Steel Deck Roll Forming Machine
    Main Technical Features
    • Adopting independent forming stands and inner transmission chain, and the rollers are treated with ionitriding and polishing processes.
    • The flat sheet pre-cutting unit is equipped to avoid waste of raw materials.
    • Procedure control and encoder are adopted for length measurement, it allows the machine to implement cut to length process automatically.
    • Adopting auto stacker for automatic counting and feeding out the products.
    Main Components

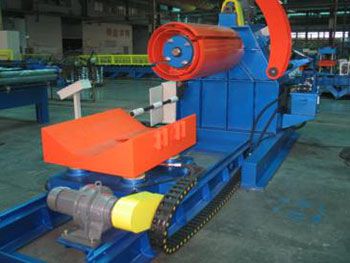

    • HGM Steel Deck Roll Forming MachineFully automatic decoiler

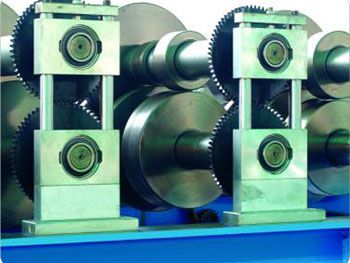

    • HGM Steel Deck Roll Forming MachineRoll forming system
    • HGM Steel Deck Roll Forming MachineRoll forming system
    • HGM Steel Deck Roll Forming MachineRoll forming system

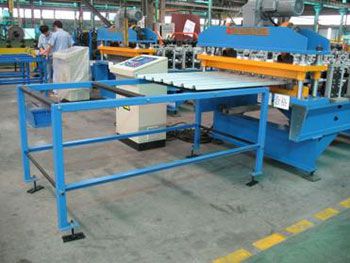

    • HGM Steel Deck Roll Forming MachineFinished product supporting rack

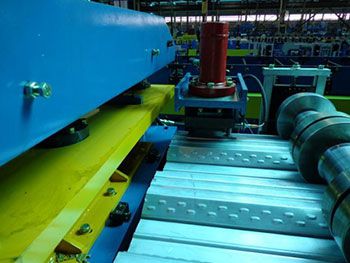

    • HGM Steel Deck Roll Forming MachineInspection
    Technical Parameters
    Item Unit Parameter Remark
    Suitable material Type Galvanized sheet
    Thickness mm 0.8-1.2 or 1.0-1.5 Depending on customers' requirement
    Yield strength Mpa ≤400 As per customers' material characteristic
    Width mm ≤1500 According to different profile shape
    Coil weight T 5, 8 or 10 Optional
    Working speed m/min ≤15
    Roller material 45steel or 38CrMoAl According to customers' requirement
    Roller driving mode External chain drive
    Electric control system Industrial computer PLC frequency control
    Console mode Touch screen+ button
    Total power kW 24 As per technical requirement
    Outline dimensions (LXWXH) m 24X1.6X1.8
