    Steel Structure Machine

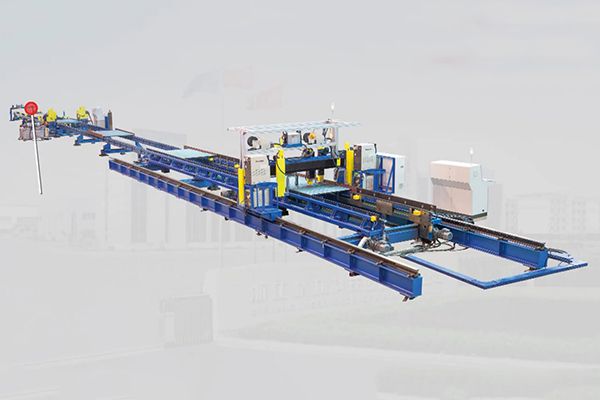

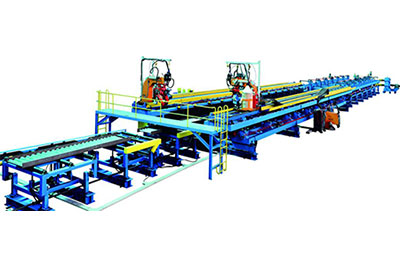

      1. JBH Corrugated Web H-beam/ SIN Beam Automatic Welding Line
      2. JBH Corrugated Web H-beam/ SIN Beam Automatic Welding LineThe JBH corrugated web automatic H-beam welding line developed by our company consists of slitting and cut to length machine, web forming machine, flange and web feeding machine, corrugated web H-beam robot automatic welding machine, cross-section cutting machine, outfeed system and so on.

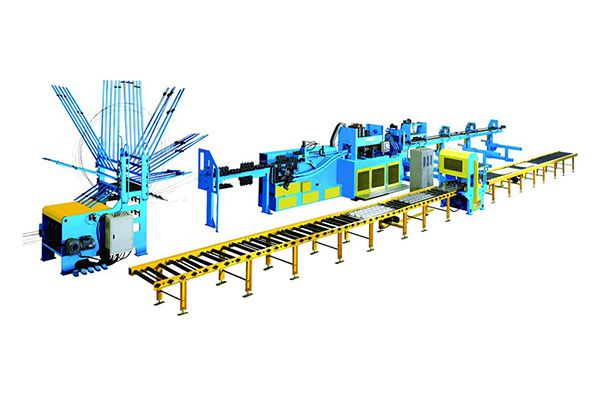

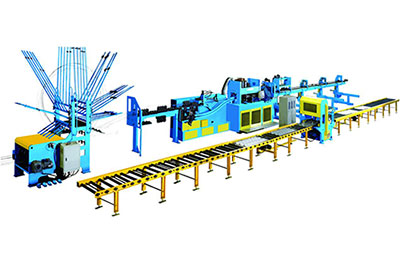

      1. JGH35A Steel Bar Truss Production Line
      2. JGH35A Steel Bar Truss Production LineJGH35A steel bar truss production line is composed of truss welding machine, bottom plate forming machine, steel plate spot welding machine, etc. Combining mechanical, electrical, hydraulic and pneumatic systems with microcomputer control, it can implement the entire process of steel bar truss welding, bottom plate forming and steel plates welding and assembling, annual production capacity reaches 30 square meters.

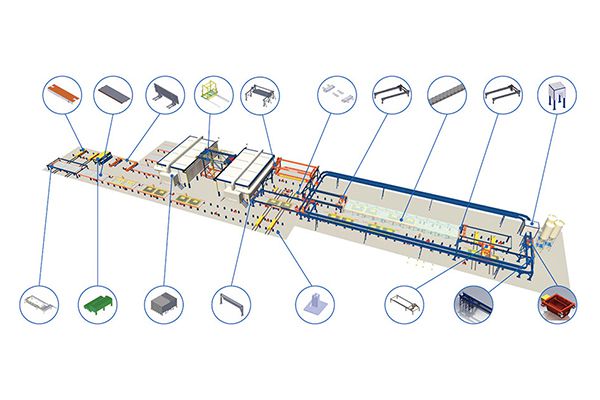

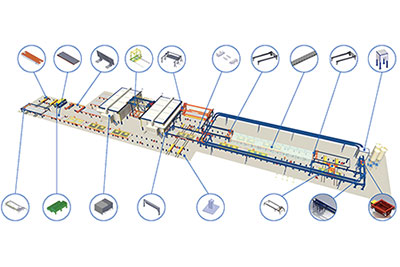

      1. PC Precast Concrete Production Line
      2. PC Precast Concrete Production LineWith the continuous development of construction technology, architectural industrialization is the new trend in the construction industry, green building is the inevitable trend of future architectural development, the modernization of housing industry carries forward the new concept of environmental protection, and realizes the transformation of construction model.

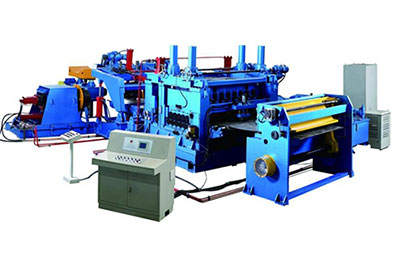

      1. Cut to Length Line
      2. Cut to Length LineThis cut-to-length machine is special equipment for uncoiling, leveling, cutting and stacking the steel sheet according to the requirement of the client.. It mainly consists of uncoiler, leveling system, feeding system, cutting system, conveying system, stacking system and so on.
        We can design and manufacture our cut-to-length lines to suit your required specifications.

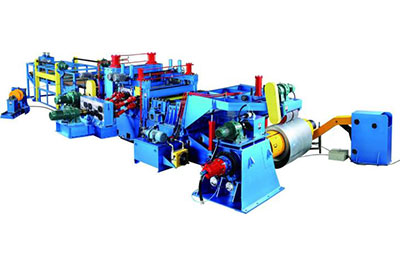

      1. Slitting Line
      2. Slitting LineThis machine is special equipment for uncoiling, slitting and recoiling the steel sheet according to the requirement of the client. It mainly consists of uncoiler, leveling system, shearing system, slitting system, scrap handling system, recoiling system, unloading system and so on.
        We can design and manufacture our slitting lines to suit your required specifications.

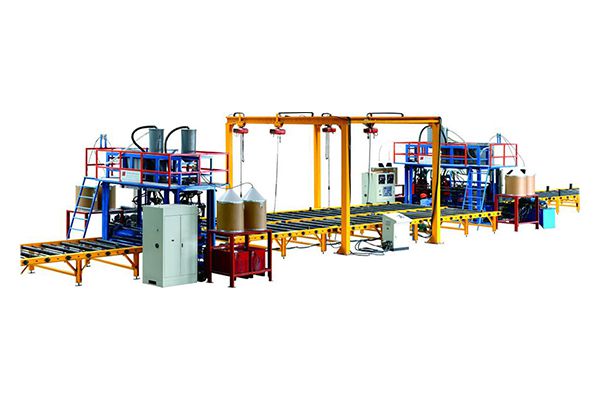

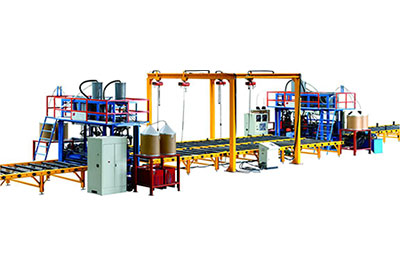

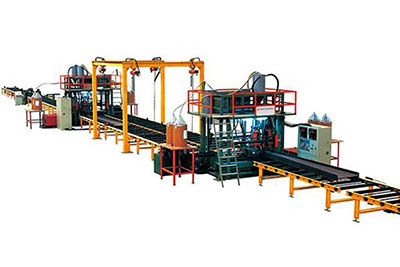

      1. JH H-Beam Welding Line
      2. JH H-Beam Welding LineJH H-beam welding line consists of assembling machine, front welding machine, turn-over device, back welding machine and transmission conveyors. It is used to assemble the H-beam with 180°turning over and transmitting, etc. The annual welding capacity is 8000 tons.

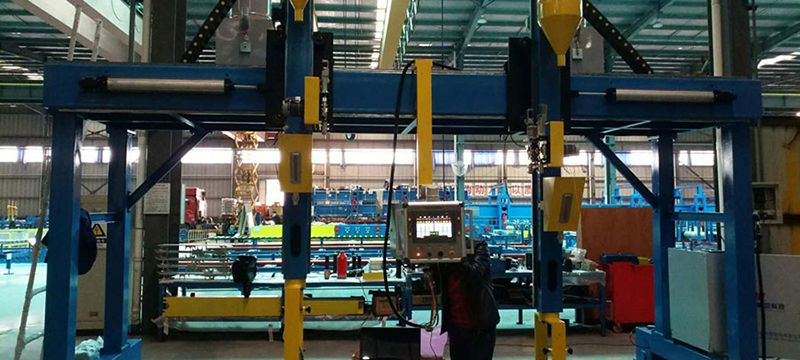

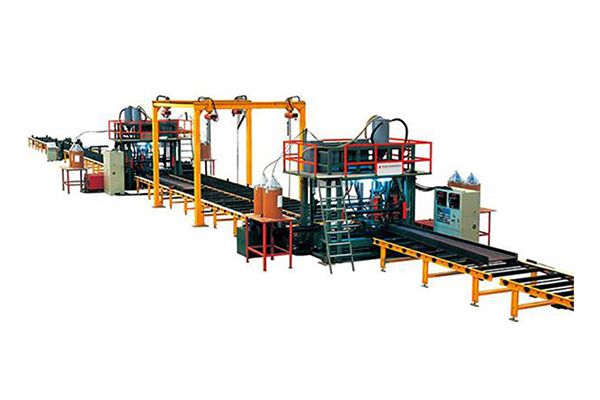

      1. H Beam Welding Machine
      2. H Beam Welding MachineJinggong H-beam welding machine is special equipment used for automatically welding the assembled H-beam. Currently there are two models, JHT double column beam automatic welding machine and JHG gantry type automatic welding machine. We are a Chinese H-beam welding line manufacturer and supplier, and can design and manufacture different specification according to different client requirement.
      1. H-Beam Assembling Machine
      2. H-Beam Assembling MachineThis H-beam assembling machine is mainly used for straightening of deformed heavy H-beam, it adopts hydraulic straightening process which will have strong straightening force and large straightening range and features high working efficiency and good quality. We can design and manufacture H-beam assembling machine with different specifications according to your requirement.

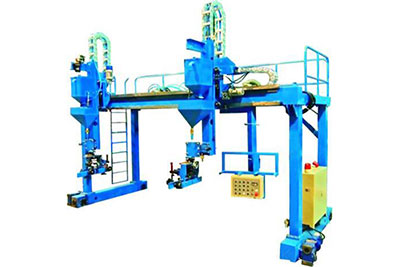

      1. Gantry Submerged Arc Welding Machine
      2. Gantry Submerged Arc Welding MachineJLH gantry submerged arc welding machine is applicable to box-shaped column production line, which implements filler pass welding process after CO2 root pass welding. It can be an ideal alternative to cantilever submerged arc welding machine, featuring a high efficiency in filler pass welding. Unipolar or multipolar welding is optional. Besides, according to different customer requirements, replaceable welding gun is specifically designed for welding "H" or "T" shaped steel.

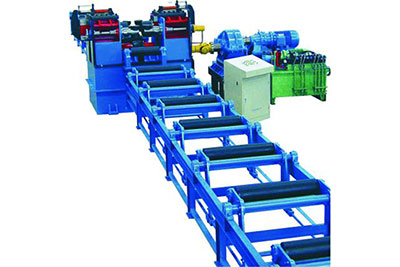

      1. H-Beam Straightening Machine
      2. H-Beam Straightening MachineOur H-beam flange straightening machine is mainly used for the angle distortion straightening of heavy H-beam. Adopting hydraulic straightening method, this machine has the features of strong straightening force, large straightening range, high working efficiency and good product quality. As a renowned manufacturer of H-beam flange straightening machine, we can design and manufacture different specification according to different requirement of the client.

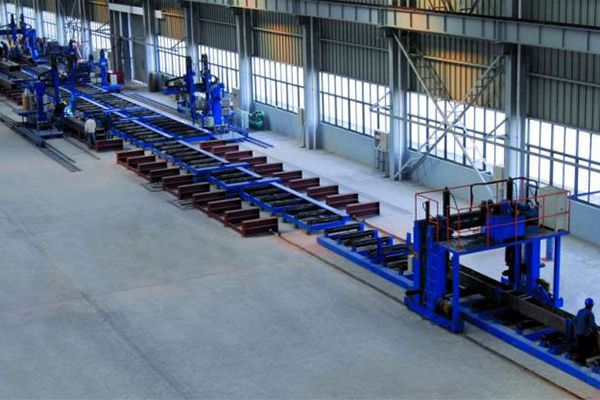

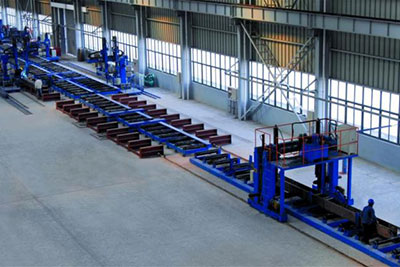

      1. Box Column Welding Line
      2. Box Column Welding LineJZ150 box-shaped column welding line consists of box assembling machine, GPW welding machine, submerged arc welding machine, electroslag welding machine, surface milling machine, moveable driving machine, turn over machine and conveyors. It can lower working strength and improve working efficiency.
      1. H Beam Shot Blasting Machine
      2. H Beam Shot Blasting MachineJPG H-beam shot blasting machine is designed and manufactured to clean the surface of the section steel. It is ideally suited for removing the rust, scale and contamination from the steel surface, which can make the surface clean, bright but with a certain coarseness. So the paint film can attach to the steel surface more firmly, thus improving surface quality and the anti-corrosion capacity.

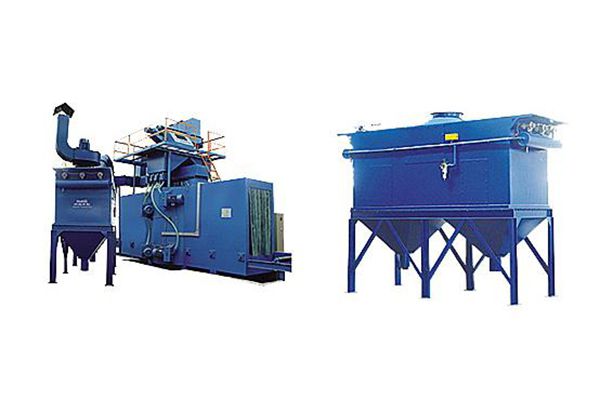

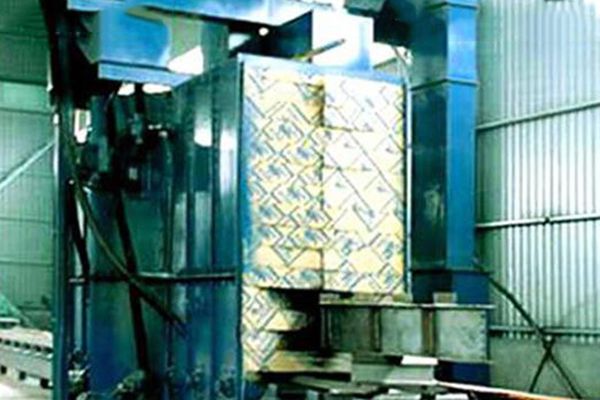

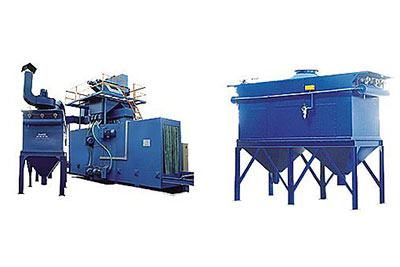

      1. Shot Blasting Machine
      2. Shot Blasting MachineOur shot blasting machine is the pretreatment equipment for cleaning welded structures, H steel and shaped steel. It is mainly used to perform the function of shot blasting towards the surface of raw steel material, which can remove rusty scale, welding slag and roll scale on the surface, thus obtaining uniform metal luster.

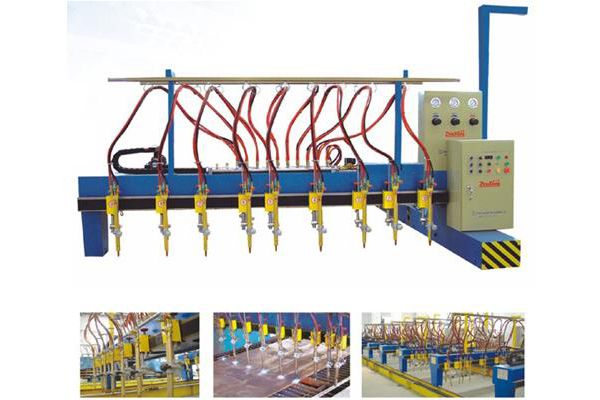

      1. CNC Flame Cutting Machine
      2. CNC Flame Cutting MachineBesides the trip cutting function, our CNC flame cutting machine add the economical and practical CNC functions, which not only can do strip cutting in batch, but also can cut different shapes. Main beam is whole press brake, welded and stress-relieved, with stable structure and good rigidity, and no deformation after long time using. Servo motor, reducer decompression valve, gas pipe and solenoid valve, cutting torches are all international famous brand, ensuring the quality stable and reliable.

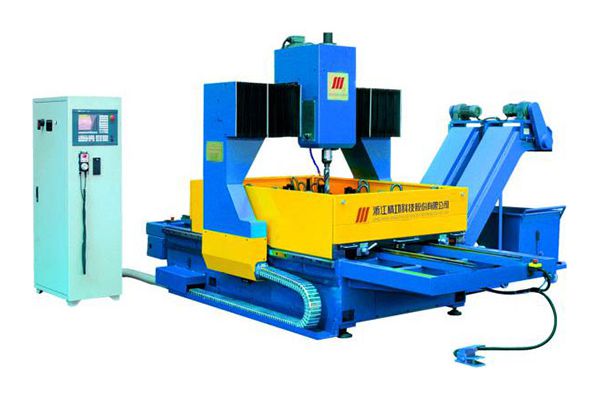

      1. Drilling Machine
      2. Drilling MachineJPZ160A digital control driller uses AC servo motor to drive the X axis and Y axis, while its Z axis is positioned by high accuracy linear encoder. By using semi-closed digital control system, the machine has reliable performance. The operation of the machine can either be operated automatically or manually. This drilling machine is widely used in steel frame construction.

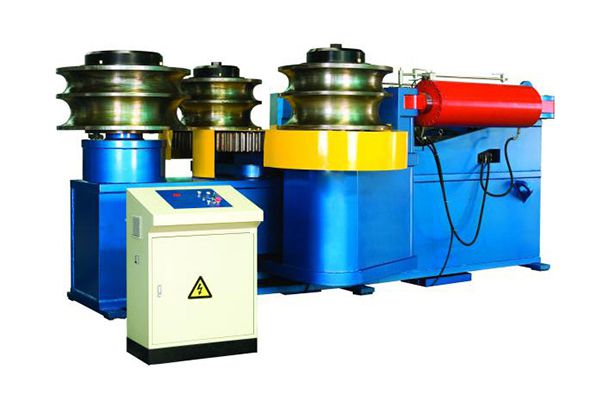

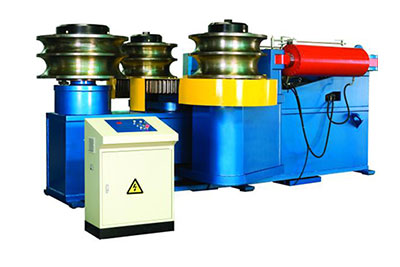

      1. Bending Machine
      2. Bending MachineOur section bending machine is a piece of special equipment designed for section bar producers. It can be used to bend the section bar into round, arc or other shapes of workpieces. This profile bender is widely used in a variety of industries, such as petroleum, chemical, hydroelectric power, shipbuilding, steel construction, and machinery manufacturing etc.

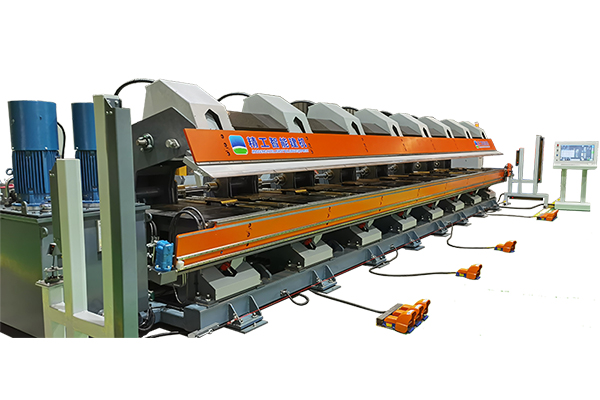

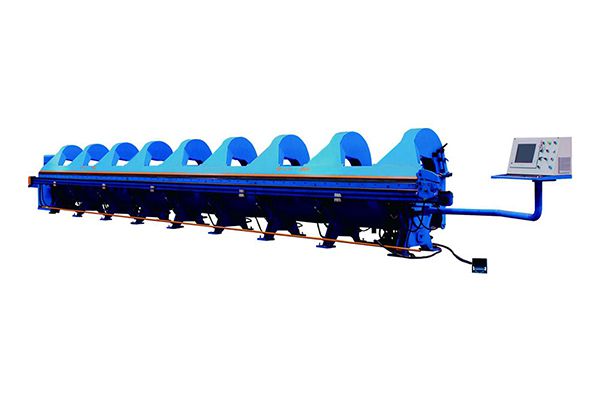

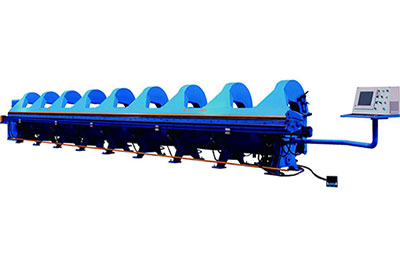

      1. Digital Folder
      2. Digital FolderJZW650 multi-angle NC folding machine adopts advanced CNC control system, providing the operator with a man-machine dialogue interface. The digital-control folder & slitter is flexibly used to fold and slit workpiece which is unsuitable using traditional pressing system. The machine mainly consists of machine body, clamp unit, folding equipment, digital-control backstop, slitting system, workpiece supporting equipment, hydraulic system and PC control system, etc.
