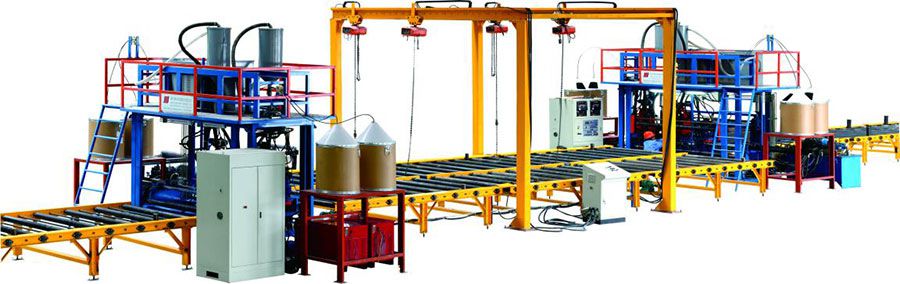

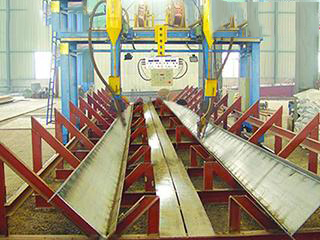

JH H-beam welding line consists of assembling machine, front welding machine, turn-over device, back welding machine and transmission conveyors. It is used to assemble the H-beam with 180°turning over and transmitting, etc. The annual welding capacity is 8000 tons.
Production Line Components
-
-

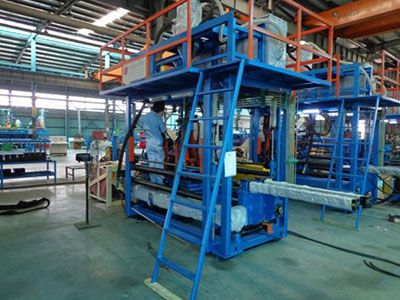

- Position fixing station
The position fixing station is used to transport the steel plate to the required position and form them into H shaped profile, and it can adjust the position of web and flanges slightly keeping the H-profile unchanged. The all operation steps are finished through control panel.
-
-
-

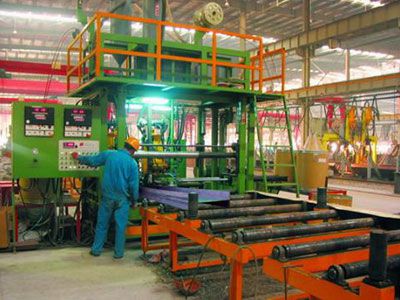

- Main welder
Main welder is America Lincoln welding machine; adopt welding technology of single-side double-wire arc welding. It features easy operation, high automation and even welding results.
-
-
-

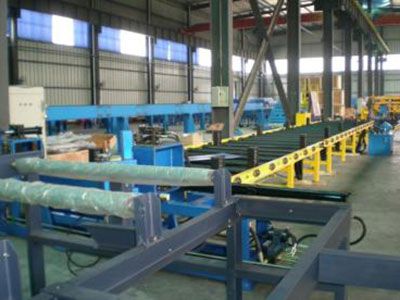

- Turning over device
This device is used to turn over the welded H beam on one surface, so that you can weld the other surface of the H beam. The turning over device and conveyor has independent operating buttons.
-
-
- Sheet feeding device
The hydraulic cylinder controls the lifting of pressing roller
- Sheet feeding device
Technical Parameters
| Item | Parameters | ||
| H-beam specs | Web width(mm) | 300-1200 | 300-1500 |
| Web thickness(mm) | 3-10 | 3-12 | |
| Flange width(mm) | 150-500 | ||
| Flange thickness(mm) | 5-16 | 5-20 | |
| H-beam length(mm) | 4000-15000 | ||
| H-beam weight(kg) | 4000 | ||
| Inclination of H-beam | ≤15° | ||
| Total Power | 64KW+90KVA×4 | ||
