With the continuous development of construction technology, architectural industrialization is the new trend in the construction industry, green building is the inevitable trend of future architectural development, the modernization of housing industry carries forward the new concept of environmental protection, and realizes the transformation of construction model. In an important period of the national housing industry development, PC technology opened a new era of housing industrialization undoubtedly with the society calls for energy saving and emission reduction.
Precast technology is an efficient method in construction, it can reduce various consumption of resources. Whether it is single family housing, or large public building, precast technology can certainly shorten the construction period, and create greater profits to achieve better quality.
- It can reduce resource and energy consumption, minimize environmental pollution.
- It can improve the quality of building product, engineering and safety performance (seismic resistance).
- Speed up the schedule of construction and shorten the construction cycle.
- Reduce labor intensity and labor cost

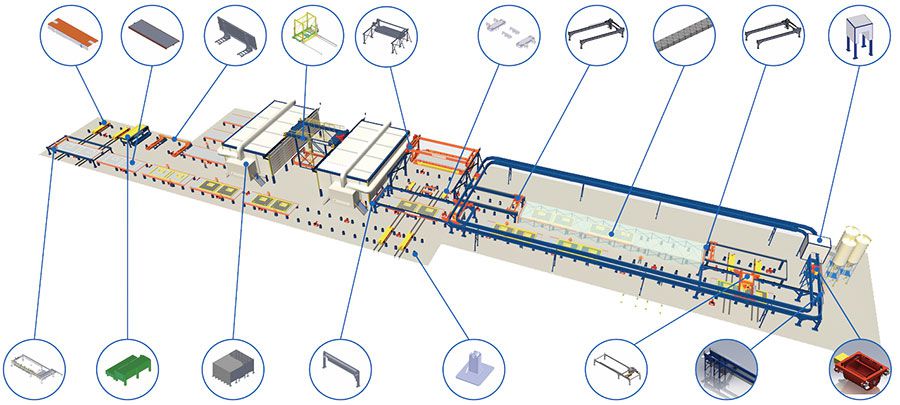

Mould cleaning and oiling ——Robotic placing of mould sides——Rebar mesh placing ——Rebar truss placing ——Rebar placing and tying——Concrete placement——Concrete scarifying——Concrete compaction——Curing ——Laminating——Laminate tilting discharging——Laminated wall——180 degree turnover——Concrete placement——Laminated wall assembling and compaction——Curing ——Tilting discharging

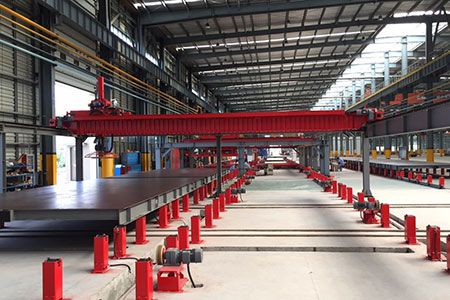

|Mould platform size (L x W x H)||10000x3500x375mm|
|Precast slab maximum size (L x W)||9500x3250mm|

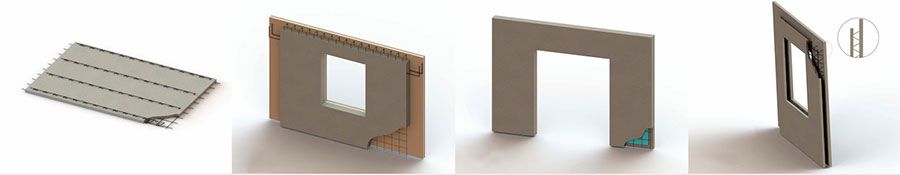

|Precast slab thickness||Laminated slab 50-80mm, solid wall 100-300mm|
|Curing chamber precast slab quantity||40|

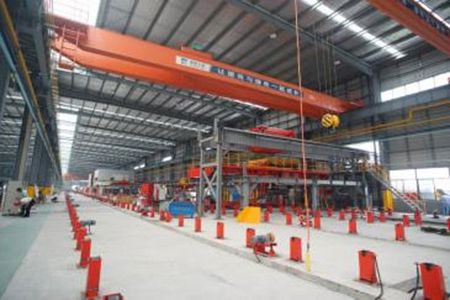

|Production line floor space||About 3000-5000 square meter|
