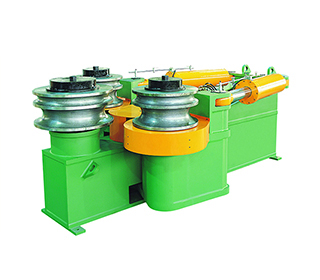

Our section bending machine is a piece of special equipment designed for section bar producers. It can be used to bend the section bar into round, arc or other shapes of workpieces. This profile bender is widely used in a variety of industries, such as petroleum, chemical, hydroelectric power, shipbuilding, steel construction, and machinery manufacturing etc.
Main Components

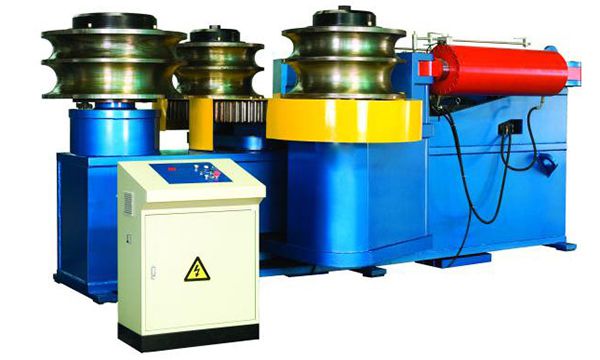

Jinggong bending machine is mainly composed of welded structure, forming rollers, left and right roller supporting racks, hydraulic system, electric control system, and so on.

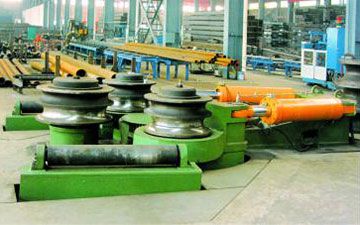

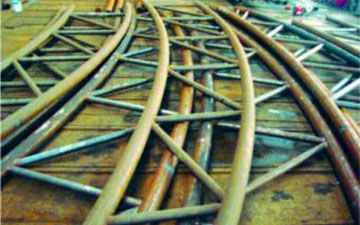

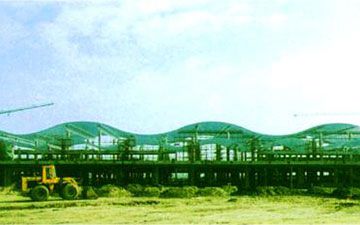

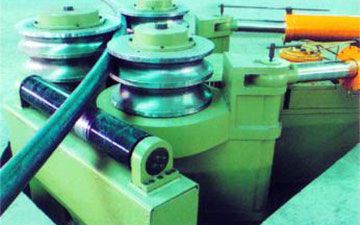

Gallery
Technical Parameters
| Item | Parameters |
| Bending-resistance modules of section | 270-2000(cm³) |
| Max. Resistance of material | 245Mpa(asQ235A) |
| Outward bending for channel steel | Model of channel steel: 50 |
| Min. Bending diameter: φ3500mm | |
| Inward bending for channel steel | Model of channel steel: 40 |
| Min. Bending diameter: φ3500mm | |
| Steel tube | Max. Section: φ426mm×16mm |
| Min. Bending diameter: φ15000mm | |
| Min. Section: φ90mm×8mm | |
| Min. Bending diameter: φ3000mm | |
| Flat bending for band steel | Max. Section: 200mm×60mm |
| Min. Bending diameter: φ3000mm | |
| Upright bending for band steel | Max. Section: 500mm×75mm |
| Min. Bending diameter: φ4800mm | |
| Working speed | 2-3m/min |
| Motor power | Hydranlic pump: 22kw |
| Supporter motor: 0.75kw×2 0.18kw×2 | |
| Dimension | 4880mm×3200mm×2000mm(length×width×height) |
| Total weight | About 36000 kg |
