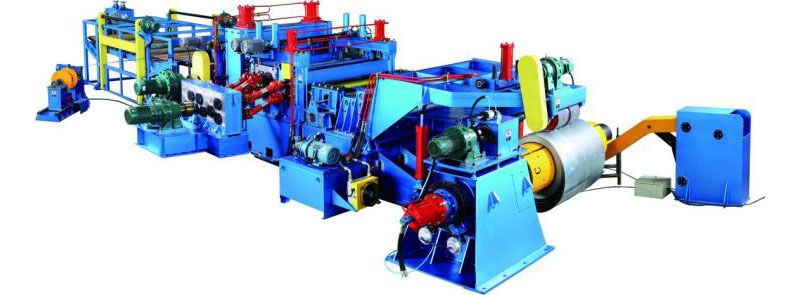

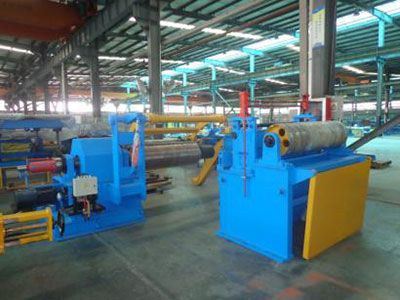

This machine is special equipment for uncoiling, slitting and recoiling the steel sheet according to the requirement of the client. It mainly consists of uncoiler, leveling system, shearing system, slitting system, scrap handling system, recoiling system, unloading system and so on.
We can design and manufacture our slitting lines to suit your required specifications.
Production Line Components
-
-
- Coil loading car
It moves forward and backward, and can lift the coils. Max. capacity:20T
-
-
-

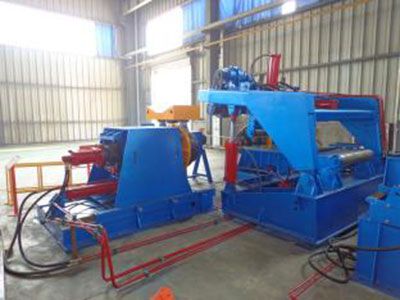

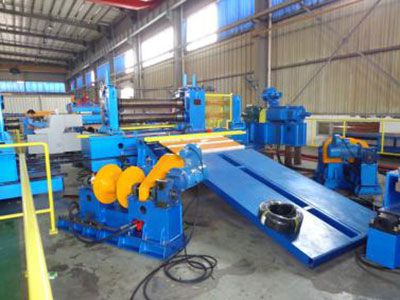

- Decoiler
This decoiler is double drum shaft double bearing type
Suitable coil ID: Φ508/Φ610
Coil width: Max.1500mm
Max. capacity: 20T
-
-
-

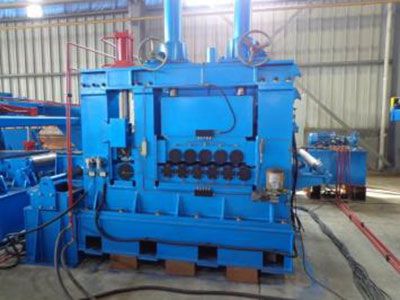

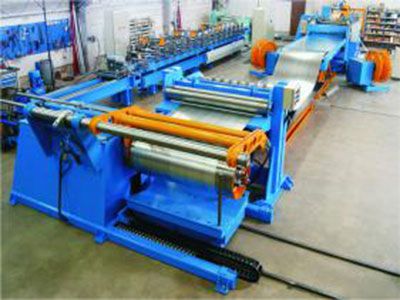

- Leveler
The roller leveler is equipped with 5 leveling rollers and 2 pinching rollers.
-
-
-

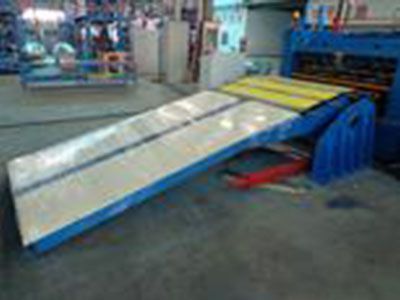

- Loop
The loop is used to adjust the coil speed when it enters the measuring device
-
-
- Sheet feeding device
The hydraulic cylinder controls the lifting of pressing roller
- Sheet feeding device
-
- Shearing system
Adopt hydraulic valve shear and it is used for cutting off the both ends of sheet.
- Shearing system
More Details

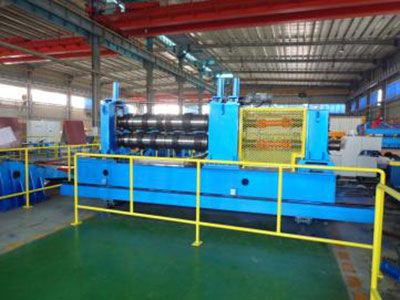

Slitter
Scrap handling
Recoiler
Technical Parameters
| Item | Parameters | ||||
| Model | JZ-3×1600 | JZ-6×1600 | JZ-8×1600 | JZ-12×2200 | JZ-16×2200 |
| Thickness(mm) | 0.3-3.0 | 1.0-6.0 | 2.0-8.0 | 2.0-12.0 | 3.0-16 |
| Coil weight(T) | 35 | 35 | 35 | 35 | 40 |
| Width(mm) | 800-1600 | 800-1600 | 800-1600 | 800-2200 | 1000-2200 |
| Finished product min.width(mm) | 35 | 65 | 75 | 75 | 75 |
| Line speed(m/min) | 0-120 | 0-60 | 0-40 | 0-30 | 0-20 |
| Power(KW) | 200 | 220 | 160 | 130 | 150 |
| Mechanical area(m) | 8×22 | 10×28 | 10×30 | 10×35 | 13×30 |
