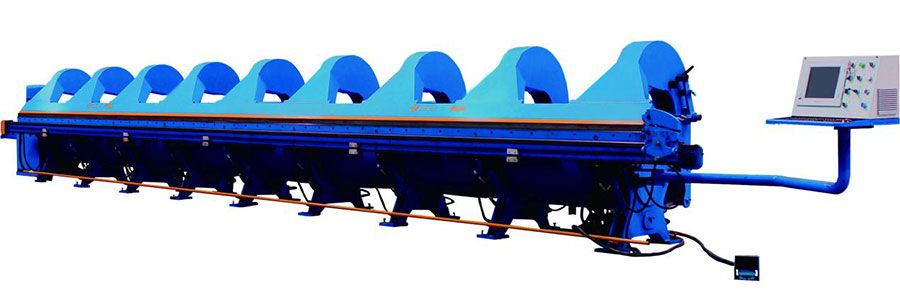

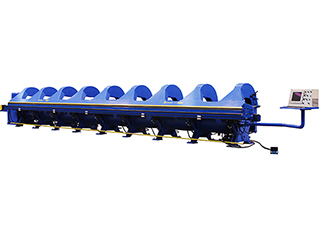

JZW650 multi-angle NC folding machine adopts advanced CNC control system, providing the operator with a man-machine dialogue interface. The digital-control folder & slitter is flexibly used to fold and slit workpiece which is unsuitable using traditional pressing system. The machine mainly consists of machine body, clamp unit, folding equipment, digital-control backstop, slitting system, workpiece supporting equipment, hydraulic system and PC control system, etc.

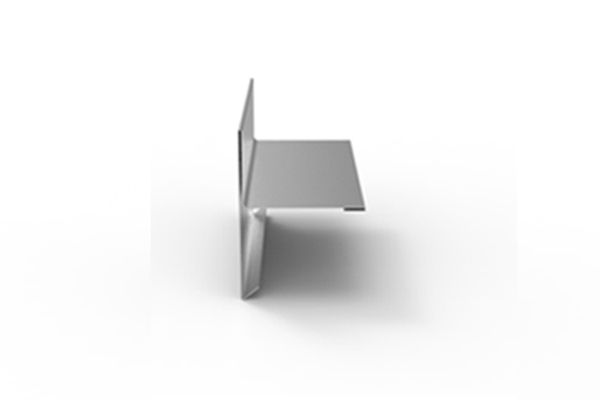

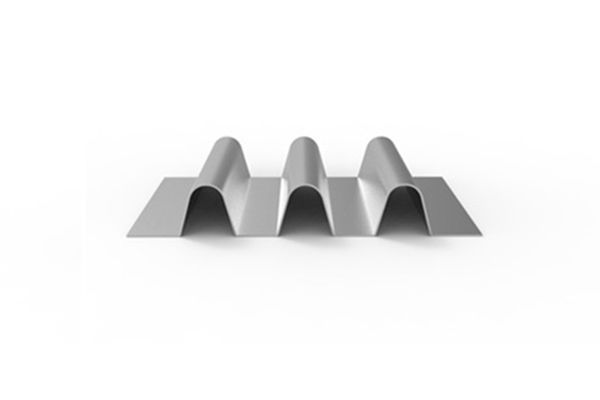

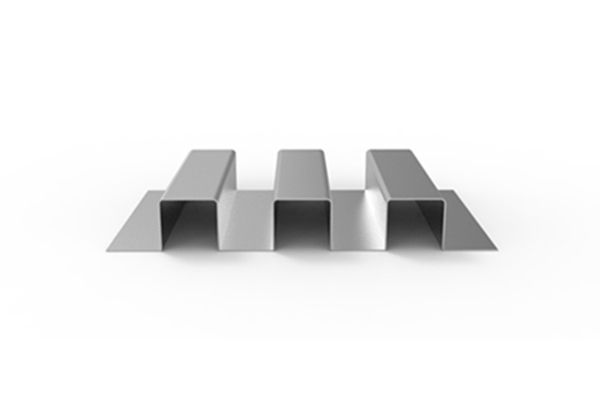

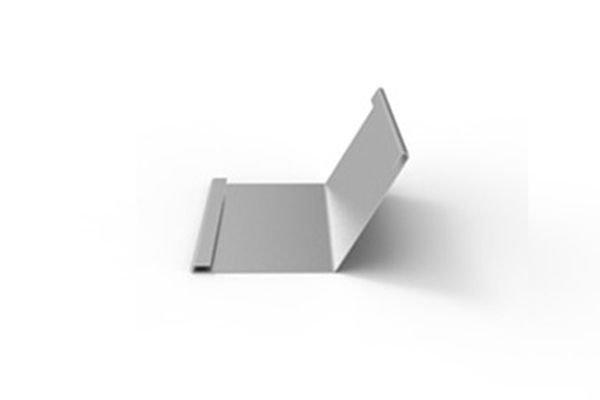

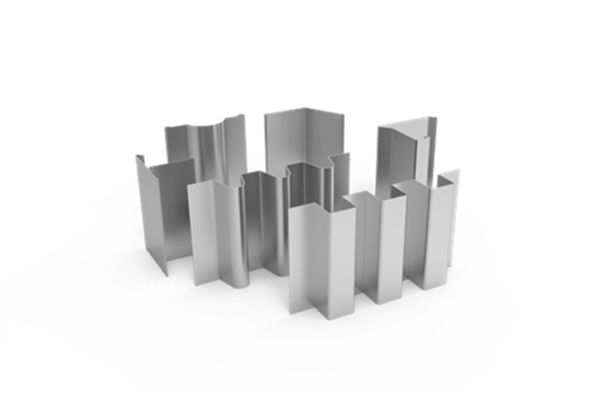

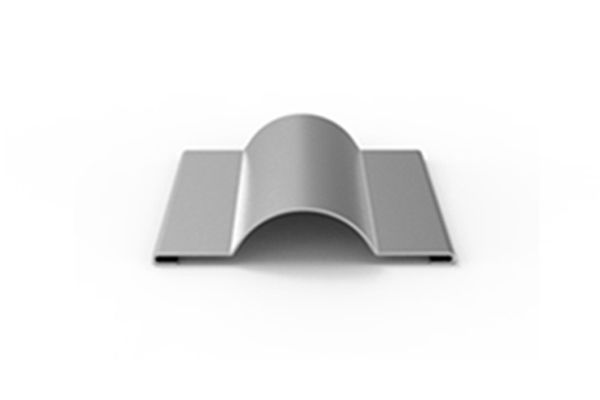

Samples
Technical Parameters
| Item | Parameter | Notice | ||||
| Model | JZW650 | JZW800 | JZW1000 | JZW800 | ||
| Max.folding length(mm) | 6500 | 8000 | 10000 | 8000 | ||
| Throat depth(mm) | 800 | |||||
| Max.folding thickness(mm) | Normal steel | 1.5 | 3.0 | ≤250MPa | ||
| Soft aluminum | 2.0 | 4.0 | ||||
| Stainless steel | 1.0 | 2.0 | ||||
| Max.slitting thickness(mm) | Normal steel | 1.5 | 3.0 | ≤250MPa | ||
| Soft aluminum | 2.0 | 4.0 | ||||
| Stainless steel | 1.0 | 2.0 | ||||
| Max.folding angle | 125 | |||||
| Slitting speed(m/min) | 40 | |||||
| Hydraulic pressure(Mpa) | 15 | |||||
| Total hydraulic power(KW) | 11 | 18.5 | ||||
| Total power(KW) | 11.5 | 19 | ||||
| Total weight(KG) | 4500 | 5400 | 6500 | 13000 | ||
