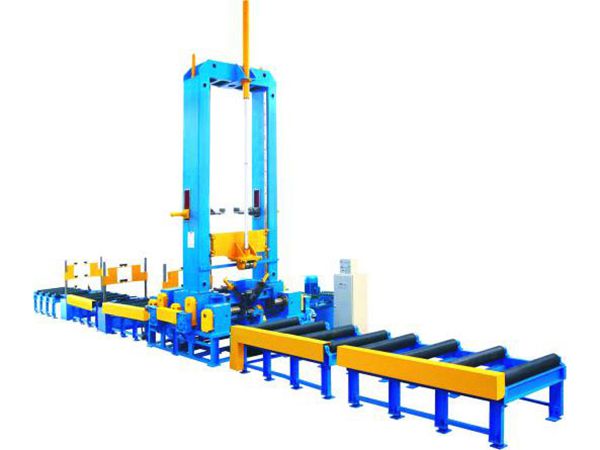

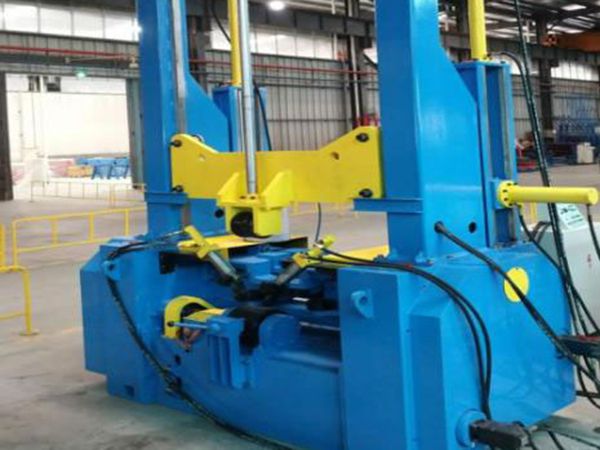

H Beam Assembling Machine

H Beam Assembling Machine

H Beam Assembling Machine
Our H-beam assembling machine can perform positioning and automatic tack-welding through the clamping and alignment of web plate and flange plate. Upper pinch roller adopts four groups of rails which ensure stable assembling and easy operation. As an experienced H-beam assembling machine manufacturer and supplier in China, we can design and manufacture different specification according to different requirement of the client.

Main Components
Jinggong H-beam assembling machine consists of alignment system, conveyor rolls, hydraulic system and electrical system, etc.

Technical Specifications for H-Beam Assembling Machine
Item Parameter
Web height 200-2500 mm
Web thickness 6-80 mm
Flange width 200-1000 mm
Flange thickness 6-80 mm
Workpiece length 4000-15000 mm
Assembling speed 0.5-6 m/min
