H Beam Welding Line

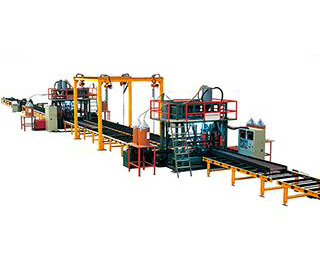

H Beam Welding Line JH120
After fixing the position for the web and two wings of the H-profile steel, our H beam welding machine can automatically clamp, adjust, weld and transport the finished products. Our welding machine has received 2 patents of utility model, and is suitable for large-scale welding jobs, with lower labor intensity and higher efficiency (8000 ton/year for each shift). Beams welded by this production line are widely used in steel constructions.

Main Components

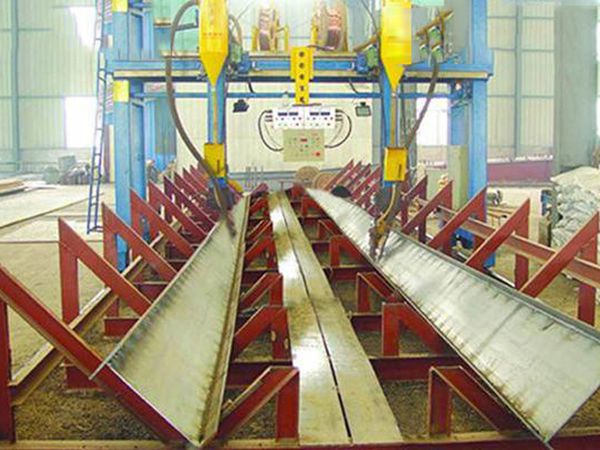

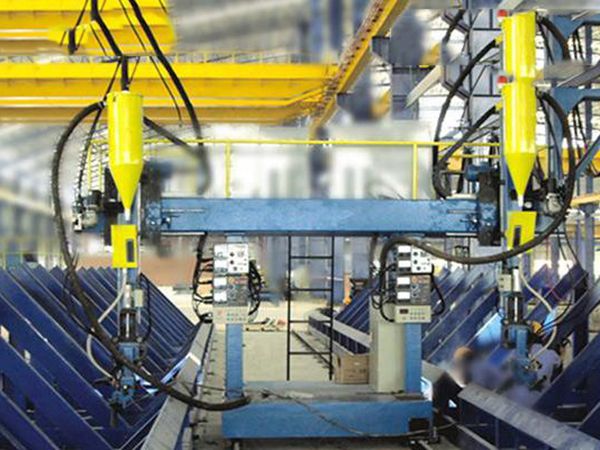

Jinggong H beam welding machine mainly consists of assembling machine, welding machine, turning machine, and conveyor.

Technical Specifications for H Beam Welding Line
Item Parameter
Suitable section size of H- profile steel Web plate width 300-1200 mm
Web plate thickness 3-8 mm
Wing plate width 150-500 mm
Wing plate thickness 5-16 mm
Suitable length of workpiece 5000-15000 mm
Max. weight of workpiece 4000 kg
Inclination of variable cross section ≤8 degree
Total power About 390(64KW+360KVA) KVA

Founded in 1968, Jinggong Science & Technology is an experienced H beam welding machine manufacturer and supplier in China. Our products have received the ISO9000 and CE certificates, and are exported to over 60 countries, such as the USA, Germany, Canada, Russia, Mexico, Australia, and more. In addition to providing H beam welding machine, we also offer other steel structure machines, like box column welding machine, digital folder, slitting machine, and cut to length machine etc. If you have any queries, please contact us. Thank you!
