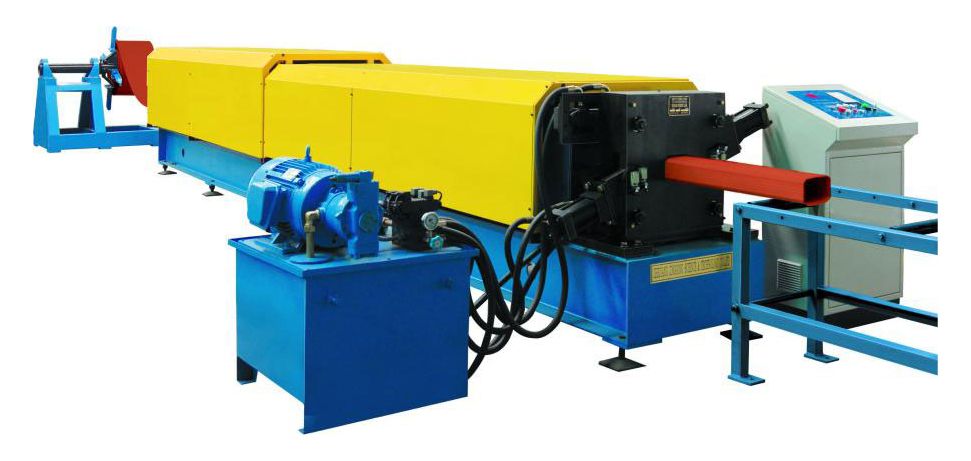

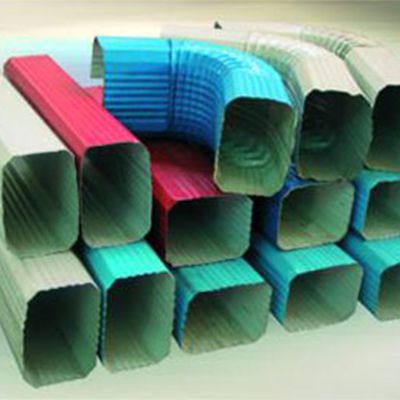

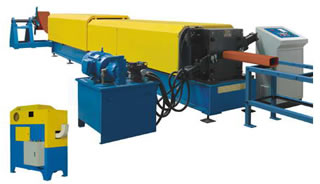

This roll forming machine can produce the various downspouts through forming the colored steel sheet. It adopts PLC control system, AC frequency conversion for speed adjustment, therefore it can automatically achieve cut-to-length process. This downspout roll forming machine has obtained intellectual property right and national patent.

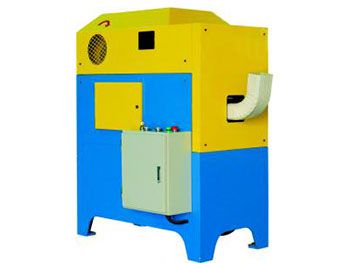

Elbow roll former is the complementary equipment which can be used for downspout bending and necking. This roll forming machine adopts cam controlling method to achieve automatic production process, the angle can be adjusted manually.
We can design and manufacture roll formers for forming different profiles according to customers' requirements.
Main Components
-

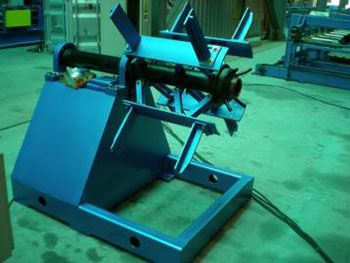

Decoile -
Roll forming system -
Bending unitrack -

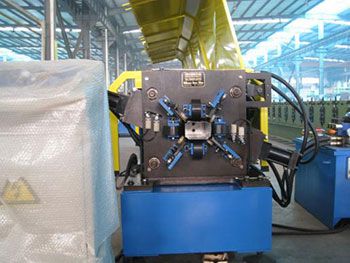

Post-cutting device -
Inspection
Technical Parameters
| Model | HS-134 | HS-118 | |
| Downspout section specification | 134×93 | 118×89 | |
| Material | Type | Color steel sheet | |
| Thickness(mm) | 0.45-0.55 | ||
| Yield strength(Mpa) | 230-300 | ||
| Forming speed(m/min) | 10 | ||
| Roller material | 45# Steel with chrome plated | ||
| Roller driven type | Chain transmission | ||
| Controller | PLC | ||
| Operation | Touch screen+button | ||
| Hydraulic system pressure(Mpa) | 12 | ||
| Hydraulic station motor power(KW) | 7.5 | ||
| Main motor power(KW) | 3 | ||
| Total power(KW) | 10.5 | ||
| Total weight(KG) | 8000 | ||
