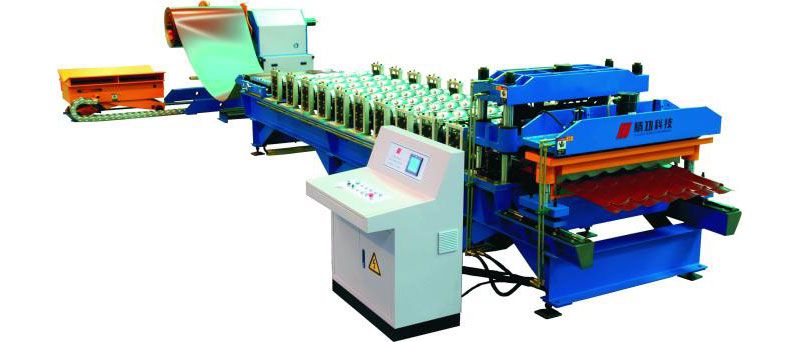

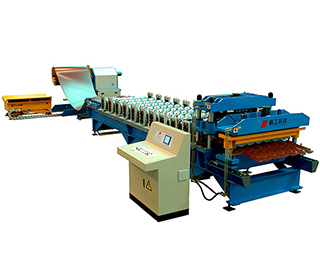

High Speed Steel Tile Forming Machine

High Speed Steel Tile Forming Machine HLM
Our HLM series high speed steel tile forming machine is designed based on the HL series forming machine. This forming equipment integrates mechanical, electrical and hydraulic technologies into one unit. This combination gives the equipment a high speed capacity with increased efficiency. Additionally, it adopts an industrial computer control system that is highly automatic. This product has earned 1 patent of invention and 2 patents of utility model. Our company produces steel tile forming machines of different specifications, models and configurations.

Main Components

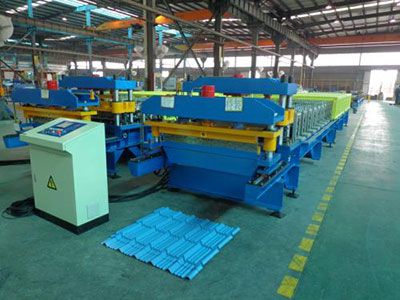

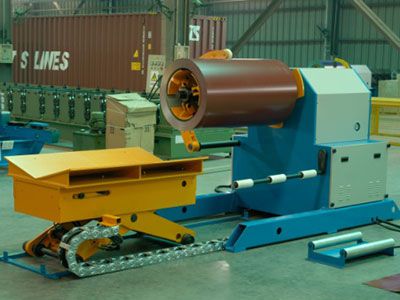

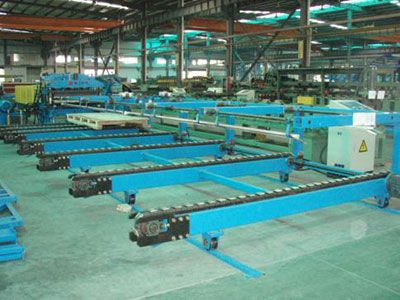

Jinggong high speed steel tile forming machine mainly consists of a decoiler, sheet guiding equipment, laminating system, roll forming system, cutting equipment, automatic stacker, hydraulic system, and automatic control system.

Technical Specifications for High Speed Steel Tile Forming Machine
Item Parameter Remark
Suitable material Type Color plate, aluminum plate Depending on customers' requirement
Thickness ≤0.65 mm
Yield strength ≤400 Mpa As per customers' material characteristic
Width ≤1250 mm According to different profile shape
Coil weight 5, 8 or 10 T Optional
Working speed ≤6 m/min
Roller material Hard chromium plated 45 steel
Roller driving mode Independent stander, built-in chain drive
Pitch adjustment range 150 -400 mm Adjustable
Electric control system Industrial computer PLC frequency control
Console mode Touch screen+ button
Total power 11 Kw As per technical requirement
Outline dimensions (LXWXH) 16X3.5 X2 m

Founded in1968, Jinggong Science & Technology is a steel tile forming machine manufacturer and supplier in China. We also provide a vast line of construction materials machinery such as sandwich panel machine, purlin forming machine, and guardrail forming machine etc. Over 50 years of experience in the industry has taught us how to make a quality product. Due to high quality and low prices, our products are exported to over 60 countries including America, Australia, Bulgaria, Argentina, Egypt, and India. Please contact us today for more product information!
