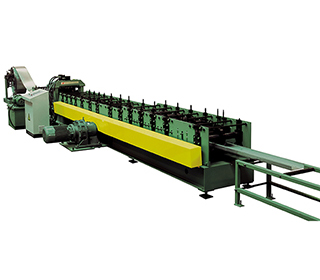

Purlin Forming Machine

Purlin Forming Machine

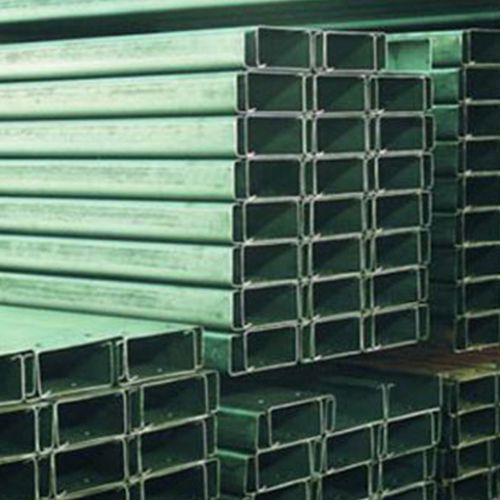

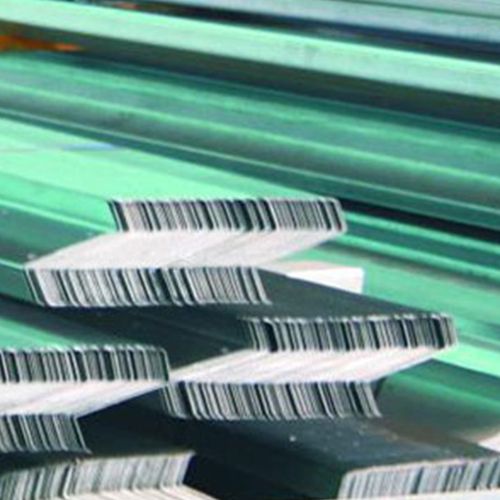

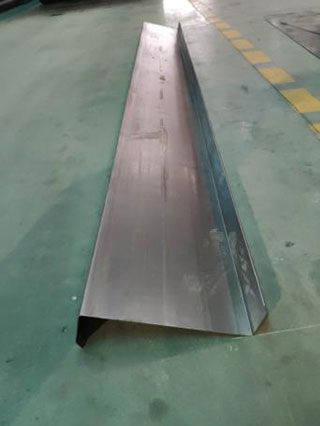

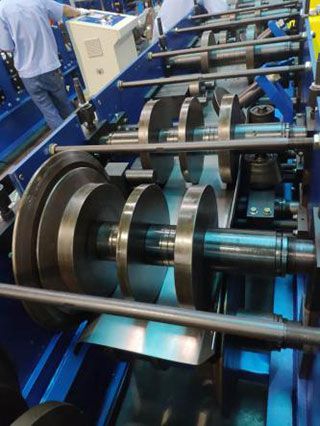

Our purlin forming machine is produced by using advanced cold bending, cold stamping, and automatic control technologies. The type of purlins you desire can be formed using this machine through the process of leveling, punching, cold forming, and cutting off. Featuring a wide application range, simple operation, high level of automation and low labor intensity, this forming equipment is very popular among our global customers. We can offer purlin machines of different specifications, models and configurations to meet your specific requirements.

Main Components

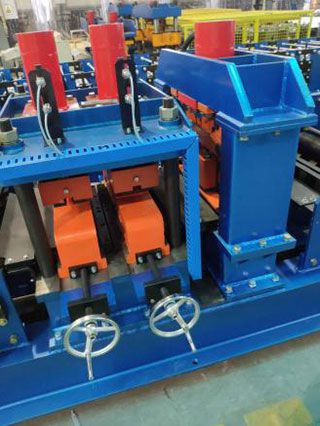

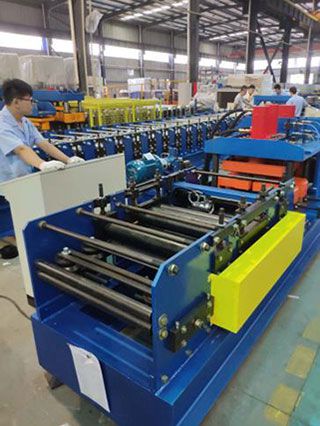

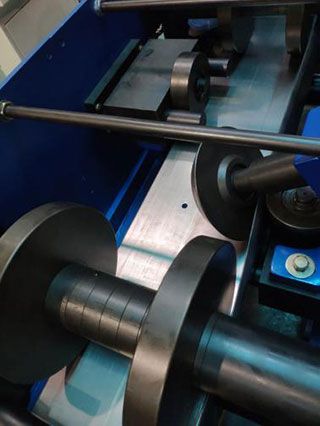

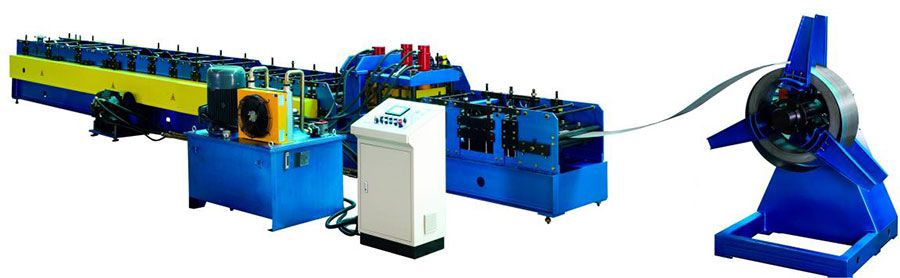

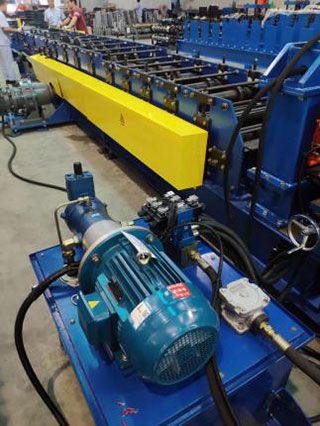

Jinggong purlin forming machine is mainly composed of decoiler, leveling system, punching equipment, cutting equipment, cold forming system, finished product supporter, hydraulic system and auto control system.

Technical Specifications for Purlin Forming Machine
Item Parameter Remark
Applicable material Type Ordinary cold, hot rolled plate, galvanized plate
Plate strength ≤350 MPa
Plate thickness 1.5-3.0 mm
Coil inside material 500, 600 mm
Coil weight 5 T
Production spec 100-300 mm
Working speed 12-15 m/min
Roller material GCr15 or D2, with quenching treatment According to customers' requirement
Driving mode Chain drive
Console mode Touch screen +button
Total power About 21 Kw
Electric control system Industrial computer PLC frequency control
Outline dimensions (LXWXH) 30X2.5X1.7 m

Founded in 1968, Jinggong Science & Technology is a professional purlin forming machine manufacturer and supplier in China. A wide range of construction materials machinery is available in our company including the sandwich panel machine, steel tile forming machine, and guardrail forming machine etc. Our products have been awarded the ISO9000 and CE certificates. Thanks to their high quality, our forming machines are exported to many countries, such as America, Australia, Bulgaria, Argentina, Egypt, India, and more. For more information, please feel free to contact us via phone, fax or email.
