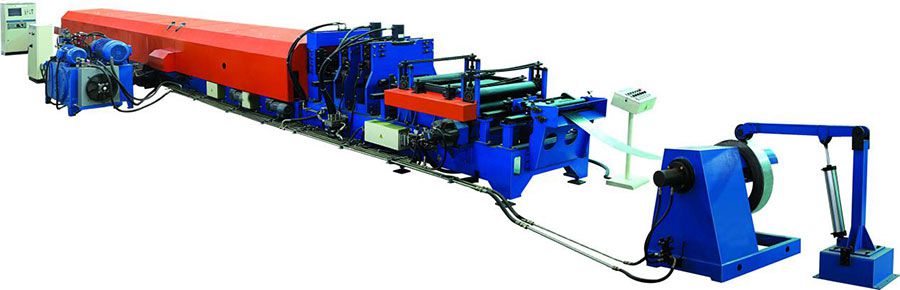

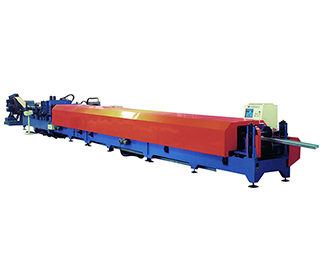

C&Z changeable purlin roll forming machine can produce both Cee and Zee profiles in one machine, and it can quick change the profiles automatically without replacing rollers. And there is a display screen shows the specification changing. In mass production, the PLC controls the processes of vertical punching, cutting, and roll forming automatically.
Main Components
-

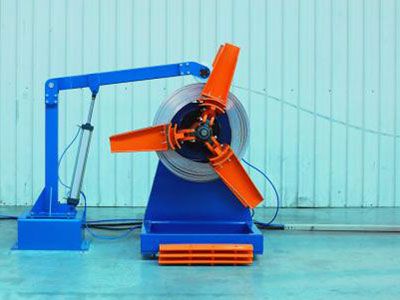

Hydraulic uncoiler -

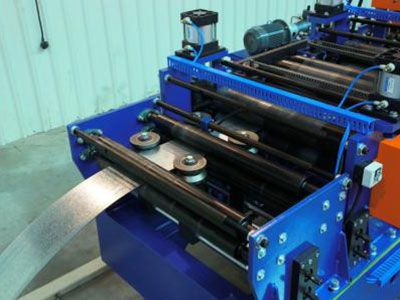

Guiding and Leveling device -
Hydraulic punching equipment -
Hydraulic cutting equipment (Pre-cutting) -

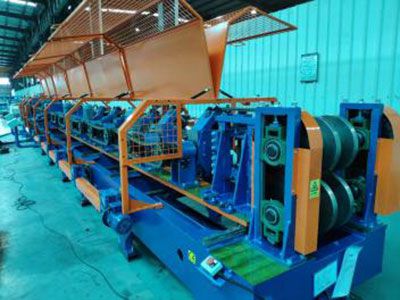

Changeable roll former -
Finished products stacker -

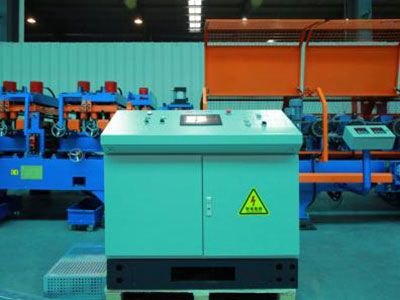

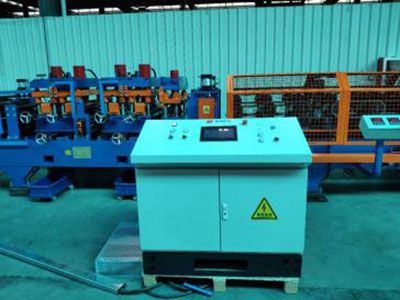

Electric control system -

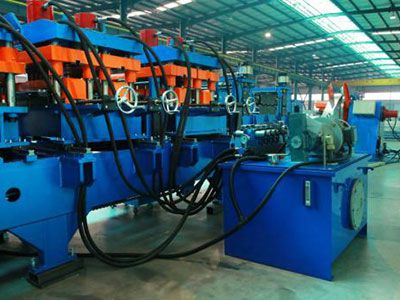

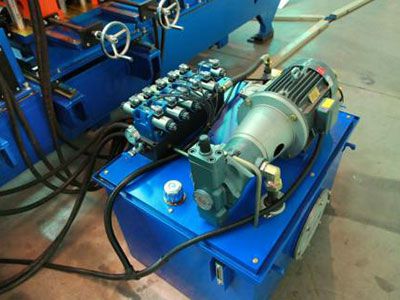

Hydraulic system
Technical Parameters
| Item | Parameters | ||

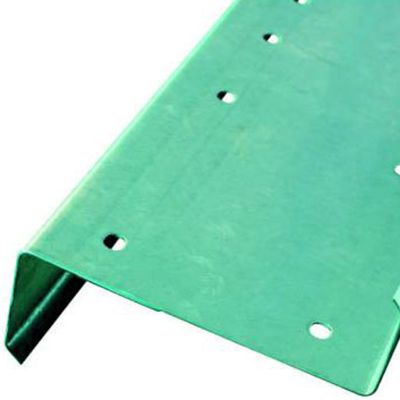

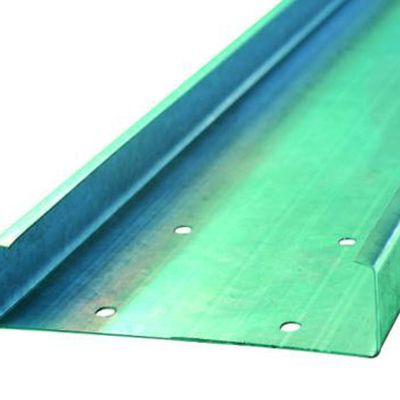

| Profile | C and Z purlin | ||
| Material | Type | Steel strip | |
| Thickness | Yield strength: 230-300(Mpa) | 1.6-3.2mm | |
| Yield strength: 300-350(Mpa) | 1.6-2.6mm | ||
| Max. Forming speed | 30 | ||
| Roller material | D2 | ||
| Roller driven type | Motor or Hydraulic | ||
| Controller | PLC | ||
| Hydraulic system pressure(Mpa) | 20 | ||
| Total power(KW) | 65 | ||
| Total weight(KG) | About 18000 | ||
