Box Column Welding Line
Box Column Welding Line
Request a Quote

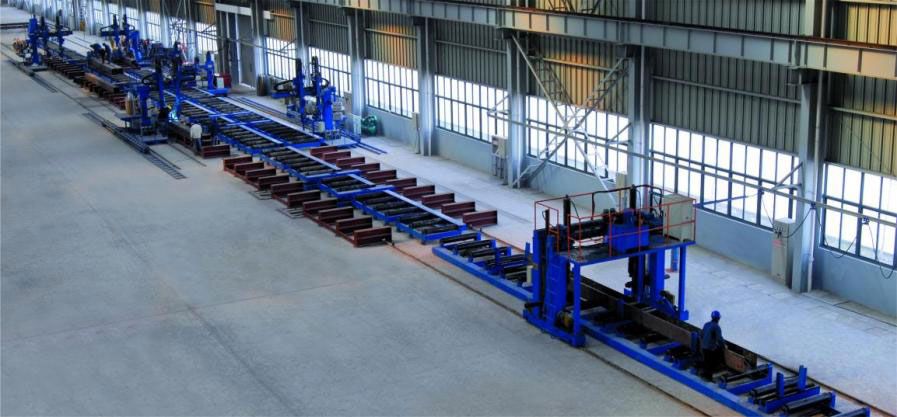

JZ150 box-shaped column welding line consists of box assembling machine, GPW welding machine, submerged arc welding machine, electroslag welding machine, surface milling machine, moveable driving machine, turn over machine and conveyors. It can lower working strength and improve working efficiency.

This machine can be designed and laid out according to your worksite, producing capacity and investment.

Production Line Components
    1. Inner clapboard assembling machine
    2. Inner clapboard assembling machine

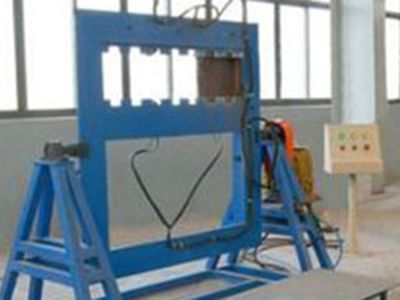

      Suitable for locating and clamping the column Inner clapboard, suitable for section dimension (400-1500)mm, board thickness ≤80mm
    1. Box shaped column assembling machine
    2. Box shaped column assembling machine

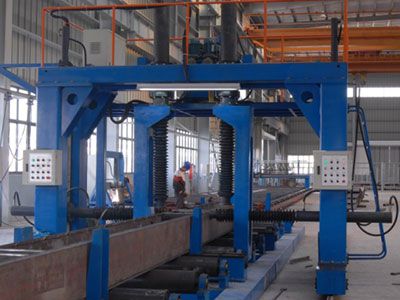

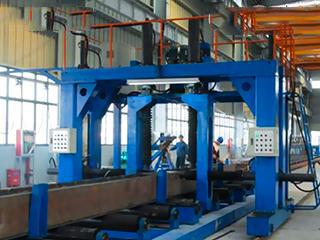

      The main body is gantry structure, adopts groove steel with welding structure. The whole machine consists of movable gantry frame, clamping cylinder with screw rod frame, anti-falling device, hydraulic system and electric system etc.

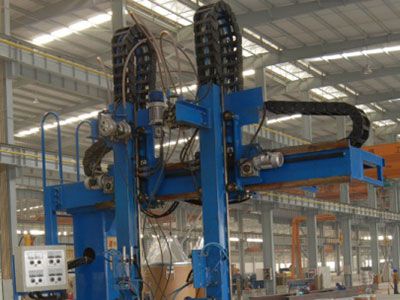

    1. Cantilever type double arc double wire GPW welding machine
    2. Cantilever type double arc double wire GPW welding machine

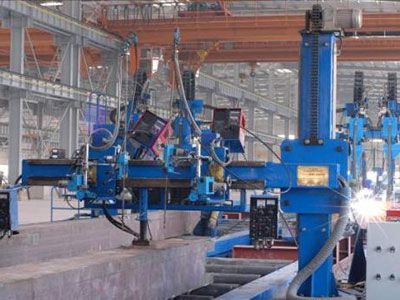

      Suitable for welding of box shaped column, it ensures the welding quality and improves the working efficiency. Suitable for workpiece section dimension of (400-1500)mm×(400-1500)mm.
    1. Cantilever type welding wire-electricoslag welding machine
    2. Cantilever type welding wire-electricoslag welding machine
      Suitable for welding of web plate with inner clapboard. It adopts SESW welding method, welding torch guides the welding wire. Suitable max workpiece section (400-1500)mm×(400-1500)mm, inner clapboard thickness 14-65mm.
    1. Cantilever double arc
    2. Cantilever double arc

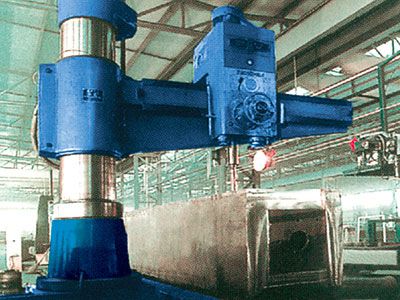

      Suitable for drilling holes of column for electroslag welding process, Wide cross-section for the workpiece (400-1500) mm; height (400-1500) mm, maximum drilling diameter 50mm.

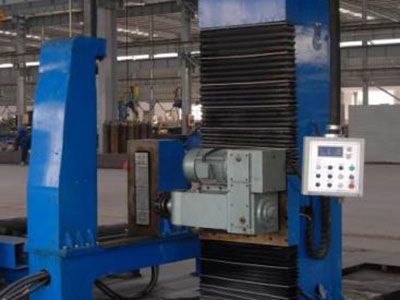

    1. Surface milling machine
    2. Surface milling machine
      Suitable for milling the surface of box shaped column, H-profile etc. Suitable for workpiece section dimension of (400-1500)mm × (400-2400)mm.
More Details

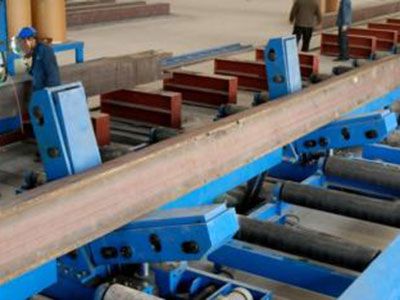

  • 180º turn over unit180º turn over unit
  • ConveyorsConveyors
Technical Parameters
Item Parameters
Section specification(mm) (300-1500)×(300-1500)
Workpiece length(mm) 4000-15000
Workpiece thickness(mm) 16-80
Workpiece weight(T) ≤20
Single shift annual capacity 5000-30000T(different configuration)
