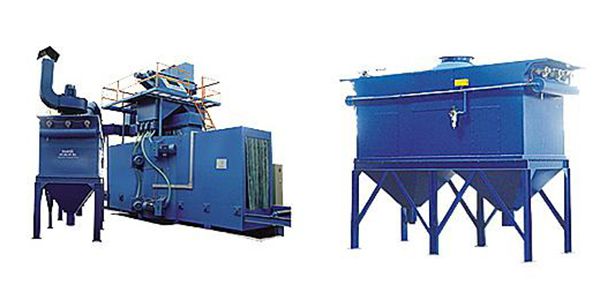

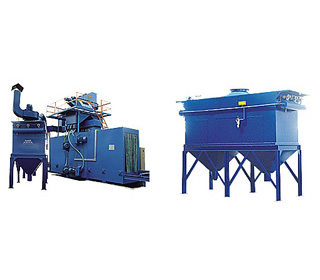

H Beam Shot Blasting Machine

H-beam Shot Blasting Machine JPG
JPG H-beam shot blasting machine is designed and manufactured to clean the surface of the section steel. It is ideally suited for removing the rust, scale and contamination from the steel surface, which can make the surface clean, bright but with a certain coarseness. So the paint film can attach to the steel surface more firmly, thus improving surface quality and the anti-corrosion capacity. We, a famous H-beam shot blasting machine manufacturer in China, can design and manufacture different specification according to different requirement of the client.

Main Components
Jinggong H-beam shot blasting machine mainly consists of shot blasting chamber, workpiece transport system, shots circulation system, dust removing system, electrical control system, etc.

Technical Specifications of H-beam Shot Blasting Machine
Item Parameter
Accessible section dimensions(W×H×L) 1200×2500×20000mm
Effective clean section area(W×H) 1200×2500mm
Productivity 1.5~3 m/min
Surface cleanness A-B Sa2~Sa2.5(GB8923-88)
Surface roughness 15~50µm(GB1030-83)
Impeller head PD-11 impeller head
Quantity 12 sets
Max. shot blast capacity 220×12=2640kg/min
