Panel Roll Forming Machine

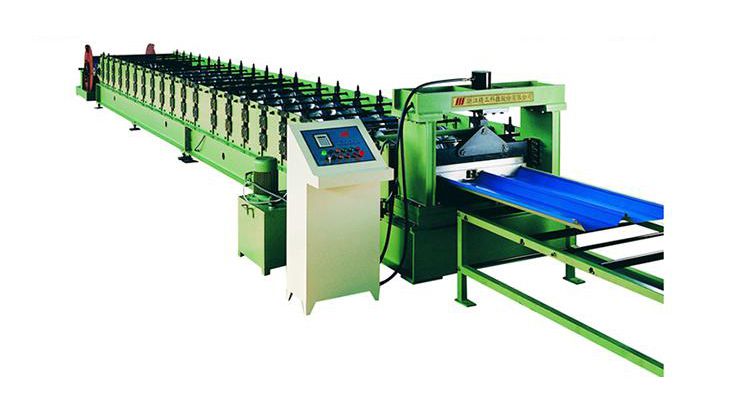

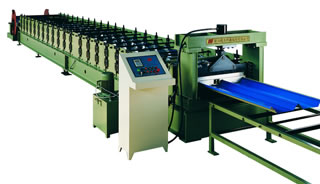

Panel Roll Forming Machine HV
This type of panel roll forming machine line includes various kinds of roof panel forming machines, wall panel forming machines, and lining plate forming machines etc. It has received 3 patents of utility model and is widely used in steel construction enclosure. We can provide roll forming equipment in various profile shapes and configurations to satisfy your specific requirements.

Main Components
Jinggong panel roll forming machine comprises of a feeding machine, sheet guiding system, forming system, cutting equipment, product supporter, hydraulic system, and electric control system.

Technical Specifications for Panel Roll Forming Machine
Item Parameter Remark
Suitable materials Type Color plate, aluminium plate, galvanized plate Depending on customer' requirement
Thickness 0.4-0.8 or 0.8-1.2 mm
Yield strength ≤400 Mpa As per customers' material characteristic
Width ≤1500 mm According to different profile shape
Coil weight 5 or 8 T Optional
Working speed ≤15 m/min
Roller material Hard chromium plated 45 steel
Roller driving mode External chain drive
Electric control system Industrial computer PLC frequency control
Console mode Touch screen+ button
Total power 6.2 kW As per technical requirement
Outline dimensions (LXWXH) 20X1.6X1.8 m

Jinggong Science & Technology has over 50 years of experience in the manufacture of panel roll forming machines. As a professional roll forming equipment manufacturer and supplier, we provide a wide range of construction material machinery, such as sandwich panel machine, steel deck forming machine, and downspout forming machine etc. Due to their high quality and reliability, our roll forming machines have been ISO9000 and CE certified and are exported to the USA, Germany, Canada, Russia, Mexico, Australia, among others. For more product information, please feel free to contact us. Thank you!
