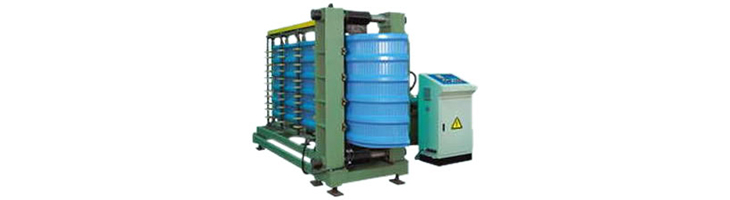

    Curving Punching Forming Machine

    Curving Punching Forming Machine
    Inquiry

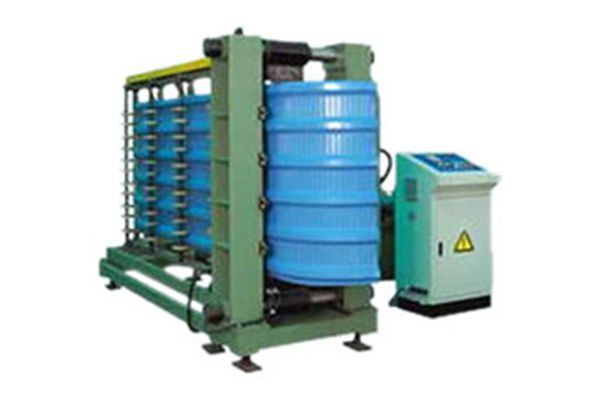

    Curving Punching Forming Machine HVW
    Our curving punching forming machine is a kind of auxiliary equipment designed for material curving and punching. It is made up of the main forming machine, conveyor, material supporter, electric control system and hydraulic system. The equipment has a small bending radius and simple operation, making it increasingly used by our worldwide customers.

    Founded in 1968, Jinggong Science & Technology is an experienced manufacturer and supplier of curving punching forming machines in China. Our products have received the ISO9000 and CE certification, and are exported to over 60 countries, such as the USA, Germany, Canada, Russia, Mexico, Australia, and more. In addition to providing curving punching forming equipment, we also offer other auxiliary equipment for forming machine, like slitter, uncoiler, stacker, and seamer etc. If you have any queries, please contact us. Thanks!

    Technical Specifications for Curving Punching Forming Machine
    Item Parameter Remark
    Suitable material Type Color plate, aluminum plate , galvanized plate According to customers' requirement
    Thickness ≤0.8 mm
    Yield strength ≤500 Mpa Depending on customers' material characteristic
    Width ≤1200 mm According to different profile shape
    Curving punching radius 500 (min.) mm
    Roller material Hard chromium plated 45 steel
    Driving mode Chain drive
    Console mode Touch screen+ button
    Total power About 7 kW
    Electric control system Industrial computer PLC frequency control
    Outline dimensions (LXWXH) 5X2X1.7 m
