Slitter

Slitter

Slitter HF

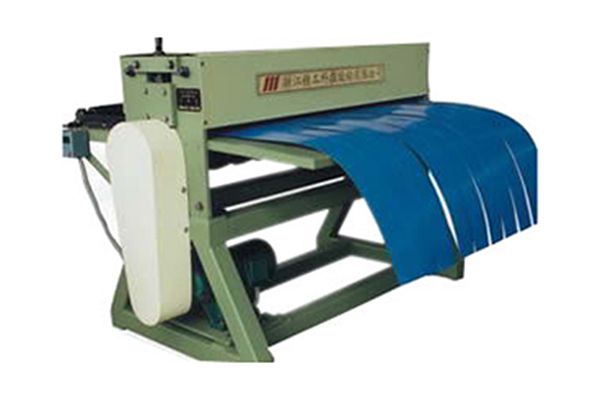

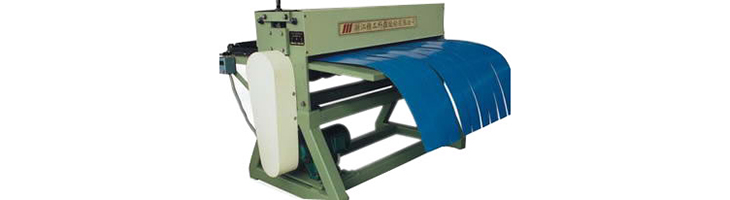

Our slitter is the auxiliary equipment used for slitting materials. It is simple in structure and easy to adjust. Jinggong Science & Technology was founded in 1968 and is an experienced slitter manufacturer and supplier. In addition to slitter, we also offer other auxiliary equipment for the forming machine, like uncoiler, stacker, etc. Due to their good quality and reliability, our products have received ISO9000 and CE certification, and are well received in over 60 countries, such as the USA, Germany, Canada, Russia, Mexico, Australia, and more.

Technical Specification for Slitter
No. Item Unit Parameter Remark
1 Suitable material Type Color plate, aluminum plate , galvanized plate
Plate width mm ≤1250
Yield strength Mpa ≤400
Plate thickness mm 0.3-1.0
2 Cutter material Cr12, with heat treatment
3 Min. slitting width mm 75
4 Driving mode Chain drive
5 Total power Kw About 1.5
6 Outline dimensions (LXWXH) m 0.8X1.8X1.7
