Uncoiler JK

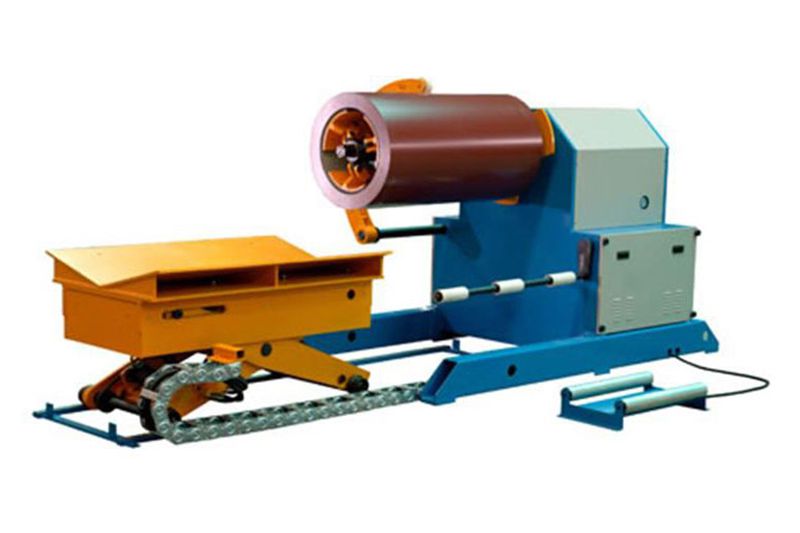

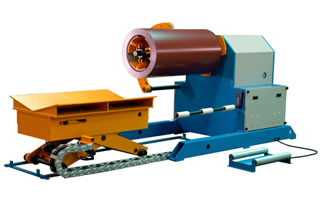

Our uncoiler is suitable for the uncoiling and conveying of thin metal sheets. It primarily consists of the main machine, tension device, arm hold down device, ultrasonic control device, electric control system and independent hydraulic system. Our stacker is innovative in design, and has received 2 patents of utility model. Automatic material loading and hydraulic tensioning are available.

Thank you for visiting our website! Jinggong Science & Technology, as an uncoiler manufacturer and supplier with over 40 years of experience. We specialize in the production of construction material machinery such as sandwich panel machine, steel tile forming machine, and guardrail forming machine etc. Our products are ISO9000 and CE certified, and are sought after by customers in the USA, India, Pakistan, Bangladesh, Turkey, the Philippines, Singapore, and more. We look forward to serving you.

Technical Specifications for Uncoiler
No. Item Unit Parameter Remark
1 Uncoiling motor power kW 2.2
2 Hydraulic station power kW 3
3 Uncoiling speed m/min Less than 50
4 Suitable coil inside diameter mm φ508/φ610
5 Suitable coil width mm 1000~1250
6 Suitable coil outside diameter mm Less than φ1300 In case of any contradictory, performance parameter is put in the first place.
7 Rated load capacity t Less than 6
8 Outline dimensions (LXWXH) mm 2600×1400×1700
