Filming and Cutting Machine

Filming and Cutting Machine

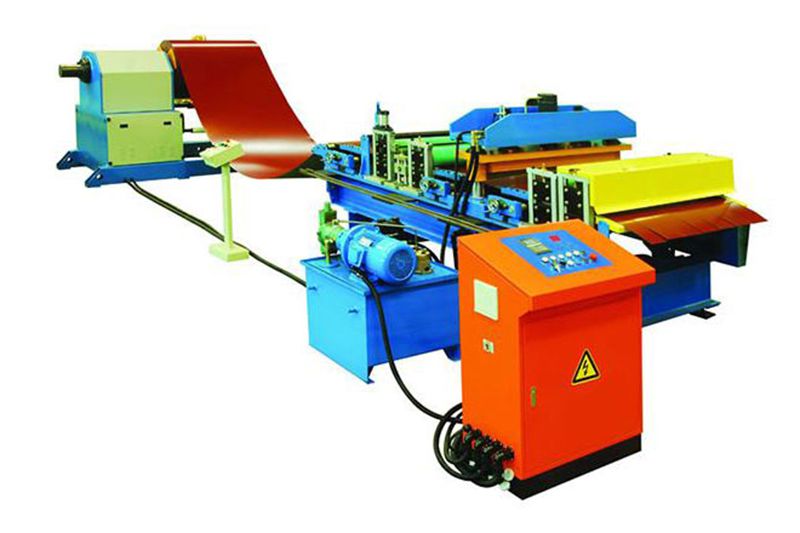

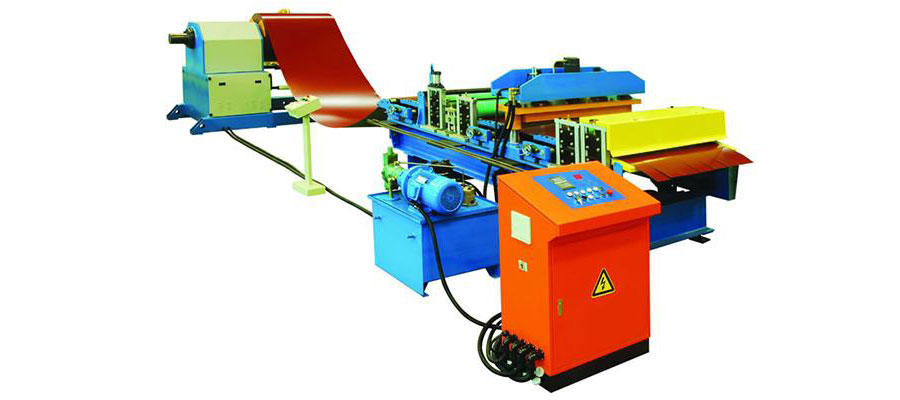

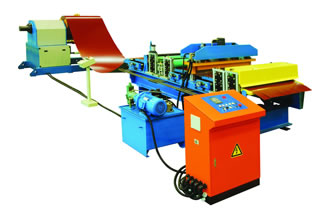

Filming and Cutting Machine HFD
Filming and cutting machine is the auxiliary equipment designed for material preparation procedures. It comprises of the uncoiling unit, filming system, shearing device, cutting equipment, material supporter, electric control system and hydraulic system. Due to its high level of automation and low labor intensity, this equipment is welcomed by both domestic and overseas customers.

As a filming and cutting machine manufacturer and supplier with over 40 years of experience, we at Jinggong Science & Technology provide a wide variety of quality construction materials machinery, such as roll forming machine, steel tile forming machine, and guardrail forming machine etc. Our products have earned the ISO9000 and CE certificates, and are well received in America, Australia, Bulgaria, Argentina, Egypt, Syria, India, and more. Contact us today for more information!

Technical Specifications for Filming and Cutting Machine
No. Item Unit Parameter Remark
1 Suitable material Type Color plate, aluminum plate , galvanized plate
Plate strength MPa ≤550
Plate width mm ≤1250
Plate thickness mm 0.3-1.0
2 Cutter material Cr12, with heat treatment
3 Slitting width mm 75(min)
4 Driving mode Chain drive
5 Total power Kw About 7
6 Outline dimensions (LXWXH) m 5X2X1.7
Feedback Form
Related products

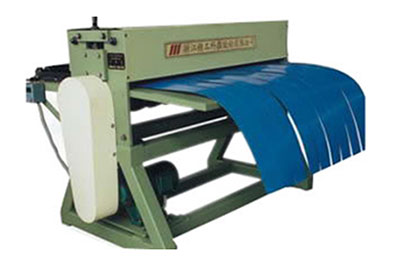

    1. Slitter Our slitter is the auxiliary equipment used for slitting materials. It is simple in structure and easy to adjust ...

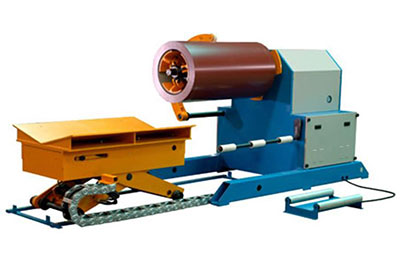

    1. Uncoiler Our uncoiler is suitable for the uncoiling and conveying of thin metal sheets. It primarily consists of the ...
